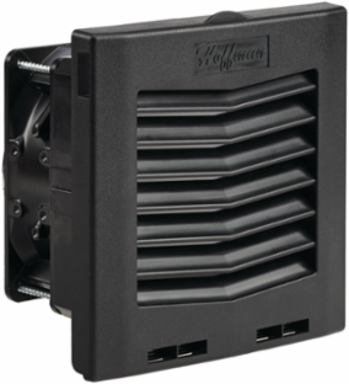

Nvent Hoffman HF0526413 Side-Mount Filter Fan 230V 35CFM 6.15x6.16x3.98 Inch Plastic Black
Nvent Hoffman HF0526413 Side-Mount Filter Fan 230V 35CFM 6.15x6.16x3.98 Inch Plastic Black
- MPN: HF0526413
- UPC: 783510342760
- PPN: HOF-HF0526413
- UNSPSC: 40101604
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$323.08/ EA
Description
HF Side-Mount Filter Fans provide fresh air cooling, ease of installation and tool-less maintenance. This HF05 Side-Mount Filter Fan, HF0526413 item is rated 230V 35CFM colored Black.
Features
- Click-Fit design quickly installs into enclosure wall; no tools or screws required
- Opens with the flick of a finger for easy filter replacement
- Enclosure side wall mounting
- Reverse airflow option on HF13 models available to push/pull air through higher static pressure
- Standard rope gasket provides proper seal to the enclosure
- Similar cut-out sizes as other filter fan manufacturers
- Terminal block connections
- Optional thermostat available to save energy and extend service life
- Hinged grille remains attached after opening
- Size rage from 4 inch (102 mm) to 13 inch (325 mm)
- Free air flow from 21 CFM (36 m3/hr.) to 484 CFM (822 m3/hr.)
- Service life hours from 40,000 to 100,000 hours
- Operating temperature range of -4 F/-20 C to 149 F/65 C
Specifications
Specifications
- BABA
- Contact Manufacturer
- Nominal Voltage
- 230
- Width (W)
- 156
- Max Current
- 0.12
- Material
- Plastic
- Color Code
- RAL 9011
- Size
- 6.15 x 6.16 x 3.98 in
- Voltage Rating
- 230 VAC
- Housing Material
- Non-metallic
Airflow59
Height (H)156
Depth (D)101
Operating Temperature-10
ColorGraphite Black
Weight2.4
Flow Rate35 CFM
Amperage Rating.12/.10 A
FinishBlack
Downloads
