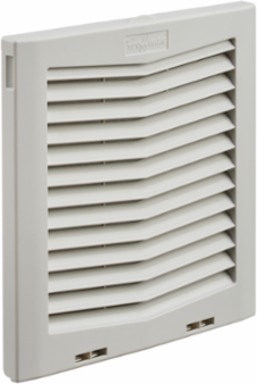

nVent Hoffman HG1000404 10 Inch Filter Fan Exhaust Grille IP54, Light Gray, Plastic
- MPN: HG1000404
- UPC: 783510342289
- PPN: HOF-HG1000404
- UNSPSC: 40101604
CAD
$115.23
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
HG Filter Fan Exhaust Grilles have unique click-fit design which quickly install on enclosure sides. This HG Filter Fan Exhaust Grille fits HF10 fans, HG1000404 item measures 10-inch colored Lt Gray rated IP54.
Features
- Click-Fit design quickly installs into enclosure wall; no tools or screws required
- Opens with the flick of a finger for easy filter replacement
- Enclosure side wall mounting
- Standard rope gasket provides proper seal to the enclosure
- Similar cut-out sizes as other filter fan manufacturers
- Hinged grille remains attached after opening
- Size range from 4 inch (102 mm) to 13 inch (325 mm)
- Free air flow from 21 CFM (36 m3/hr.) to 484 CFM (822 m3/hr.)
Documentation & Downloads
Specifications
Additional
| Size | 10 in |
|---|---|
| Free Airflow Range | 21 to 484 CFM (36 to 822 m3/hr) |
| Width | 258 mm |
| Weight | 1.2 kg |
| Finish | Smooth Matte |
| Mounting Type | Enclosure side wall mount |
| Seal Type | Standard rope gasket |
| Material | Plastic |
|---|---|
| Height | 257 mm |
| Depth | 43 mm |
| Color | Light Gray (RAL 7035) |
| Ingress Rating | IP54 |
| Cutout Size Range | 4 in to 13 in (102 mm to 325 mm) |
| Compatibility | Fits HF10 fans |
