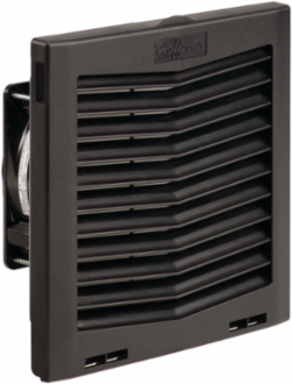

nVent Hoffman HF0924413 Side-Mount Filter Fan 24V 70 CFM Graphite Black, Size 8.19 x 8.21 x 4.15 Inch
- MPN: HF0924413
- UPC: 783510342821
- PPN: HOF-HF0924413
- UNSPSC: 40101604
CAD
$398.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
HF Side-Mount Filter Fans provide fresh air cooling, ease of installation and tool-less maintenance. This HF09 Side-Mount Filter Fan, HF0924413 item is rated 24V 70CFM colored Black.
Features
- Click-Fit design quickly installs into enclosure wall; no tools or screws required
- Opens with the flick of a finger for easy filter replacement
- Enclosure side wall mounting
- Reverse airflow option on HF13 models available to push/pull air through higher static pressure
- Standard rope gasket provides proper seal to the enclosure
- Similar cut-out sizes as other filter fan manufacturers
- Terminal block connections
- Optional thermostat available to save energy and extend service life
- Hinged grille remains attached after opening
- Size rage from 4 inch (102 mm) to 13 inch (325 mm)
- Free air flow from 21 CFM (36 m3/hr.) to 484 CFM (822 m3/hr.)
- Service life hours from 40,000 to 100,000 hours
- Operating temperature range of -4 F/-20 C to 149 F/65 C
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Nominal Voltage
- 24
- Width (W)
- 209
- Max Current
- 0.35
- Material
- Plastic
- Color Code
- RAL 9011
- Size
- 8.19 x 8.21 x 4.15 in
- Voltage Rating
- 24 VDC
- Ambient Temperature
- -4 to 149 deg F
- Finish
- Black
Airflow119
Height (H)208
Depth (D)105
Operating Temperature-20
ColorGraphite Black
Weight2.7
Flow Rate70 CFM
Amperage Rating0.35 A
Housing MaterialNon-metallic
