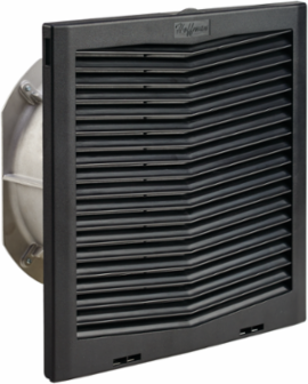

nVent Hoffman HF1348413 Side-Mount Filter Fan 48V 395CFM Graphite Black, 12.8 x 12.82 x 6.36 Inch

MPN: HF1348413
UPC: 783510344931
PPN: HOF-HF1348413
UNSPSC: 40101604

$1256.77

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

HF Side-Mount Filter Fans provide fresh air cooling, ease of installation and tool-less maintenance. This HF13 Side-Mount Filter Fan, HF1348413 item is rated 48V 395CFM colored Black.

Features

Click-Fit design quickly installs into enclosure wall; no tools or screws required
Opens with the flick of a finger for easy filter replacement
Enclosure side wall mounting
Reverse airflow option on HF13 models available to push/pull air through higher static pressure
Standard rope gasket provides proper seal to the enclosure
Similar cut-out sizes as other filter fan manufacturers
Terminal block connections
Optional thermostat available to save energy and extend service life
Hinged grille remains attached after opening
Size rage from 4 inch (102 mm) to 13 inch (325 mm)
Free air flow from 21 CFM (36 m3/hr.) to 484 CFM (822 m3/hr.)
Service life hours from 40,000 to 100,000 hours
Operating temperature range of -4 F/-20 C to 149 F/65 C

Documentation & Downloads

Specifications

Key Specifications

BABA	Contact Manufacturer
Nominal Voltage	48
Width (W)	326
Max Current	1.12
Material	Plastic
Color Code	RAL 9011
Size	12.8 x 12.82 x 6.36 in
Voltage Rating	48 VDC
Ambient Temperature	14 to 131 deg F
Finish	Black

Airflow	671
Height (H)	325
Depth (D)	162
Operating Temperature	-10
Color	Graphite Black
Weight	2
Flow Rate	395 CFM
Amperage Rating	1.12 A
Housing Material	Non-metallic
