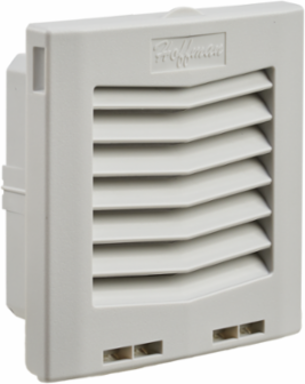

nVent Hoffman HG0500504 5 Inch Filter Fan Exhaust Grille IP55, Light Gray, Plastic, 0.5 lb
- MPN: HG0500504
- UPC: 783510342470
- PPN: HOF-HG0500504
- UNSPSC: 40101604
CAD
$140.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
HG Filter Fan Exhaust Grilles have unique click-fit design which quickly install on enclosure sides. This HG Filter Fan Exhaust Grille fits HF05 fans, HG0500504 item measures 5-inch colored Lt Gray rated IP55.
Features
- Click-Fit design quickly installs into enclosure wall; no tools or screws required
- Opens with the flick of a finger for easy filter replacement
- Enclosure side wall mounting
- Standard rope gasket provides proper seal to the enclosure
- Similar cut-out sizes as other filter fan manufacturers
- Hinged grille remains attached after opening
- Size range from 4 inch (102 mm) to 13 inch (325 mm)
- Free air flow from 21 CFM (36 m3/hr.) to 484 CFM (822 m3/hr.)
Documentation & Downloads
Specifications
Additional
| Width (W) | 156 mm |
|---|---|
| Depth (D) | 59 mm |
| Material | Plastic |
| Color Code | RAL 7035 |
| Seal Type | Standard rope gasket |
| Compatible Fan Models | HF05 |
| Height (H) | 156 mm |
|---|---|
| Weight | 0.5 lb |
| Color | Light Gray |
| Finish | Smooth Matte |
| IP Rating | IP55 |
| Installation Type | Click-Fit, Enclosure side wall mounting |
