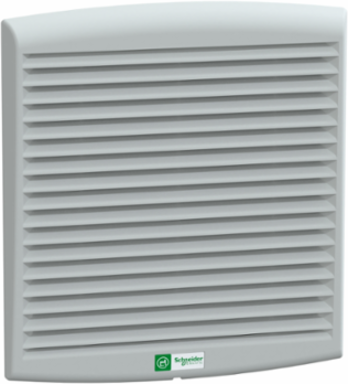

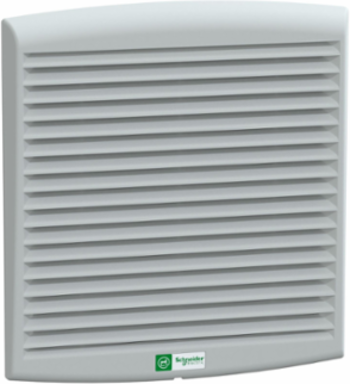

Schneider Electric NSYCVF300M230PF ClimaSys CV Fan, 300 m3/h Air Flow, IP54, 230V, 1.3 kg, 268 x 248 x 116 mm

MPN: NSYCVF300M230PF
PPN: SCH-NSYCVF300M230PF

$403.80

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

ClimaSys CV Axial motor ventilator. 230V 50Hz or 60Hz. 36 W 50 Hz, 37 W 60 Hz. Free flow rate with standard filter of 300 m3/h at 50 Hz and 350 m3/h at 60 Hz. 268 x 248 x 116 mm. Cut-out dimensions of 223 x 223 mm. Outlet grille injected thermoplastic (ASA PC), Grey RAL 7035. Connections terminals by faston connector. 2 protective grille on the front and rear surfaces. Protection IP54.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, China, Spain, France

Physical Attributes

Color	outlet grille Gray RAL 7035)

Complementary Attributes

Line Rated Current	0.16-0.16 A 60 Hz0.17-0.17 A 50 Hz

Maximum Pressure	158 Pa flow rate 0 m³/h

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Condition Of Use	surrounding environment must be relatively clean, filter must be cleaned and replaced regularly, outside temperature must be 5 °C lower than inside temperature, overfrequent filter replacement should be avoided, flow rates depends on the work point, see ProClima software
Carbon Footprint Of The Distribution Phase [A4]	3.254137820572867, 3 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.18248174813162255, 0.2 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	2 167 kg CO2 eq., 2166.954883086494
Local Publishable Date	2025-07-09
Stocking Flag	Y
Service Catalog Item	Finished good
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Energy Efficiency Optimized	False
Noise Level	53-57 dB
Product Availability	Non-Stock - Not normally stocked in distribution facility
Product Or Component Type	fan
Returnability	No
Sustainable Packaging	No
Type Of Ventilation Filter	standard
Pep Code	ENVPEP110717EN
Pep Verification Date	2025-08-05
Psr Version	PSR-0008-ed3-EN-2023 10 19
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	17
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Low voltage; 2020; France, FR
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2020; Europe, EU-27
Recyclability Potential In %	64
Width Nominal	external: 248 mm
[Us] Rated Supply Voltage	145...253 V
Cut-out Dimensions	223 x 223 mm
Package Weight(Lbs)	1.642 kg
Take-back	No
Customs Code	8414596590

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Device Composition	1 axial motor, 2 protective grille on the front and rear surfaces1 filter front of axial motor1 outlet grille front, 1 cut-out template, 1 power cord
Carbon Footprint Of The End-of-life Phase [C1 To C4]	2 kg CO2 eq., 2.449042458486215
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	11 kg CO2 eq., 10.663415435995342
Local Data Status	Publishable
Return Indicator	N
Stock Policy	2
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1107017EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1916
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Bearing Type	ball
Material	outlet grille injected thermoplastic (ASA PC)
Power Range	36 W 50 Hz37 W 60 Hz
Product Name	ClimaSys CV
Range	ClimaSys
Software Version	v6.2.5-6
Total Lifecycle Carbon Footprint	2 184 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2024-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review
Functional-unit Description	"Transfer 1 m3 of air per hour for the ventilation and air treatment and smoke exhaust and filtration of a building/Confined space over the reference lifetime of 17 years. "
Functional-unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	5361.12
Energy Model - Installation [A5]	No energy used
Energy Model - End Of Life [C1-c4]	Global, European and French datasets are used.
Height Nominal	external: 268 mm
Certificate Agency	CSA
Connections - Terminals	Faston connector
Nbr. Of Units In Pkg.	1
Silicone-free	Yes
Warranty (In Months)	18
Other Technical Guide Name	CPTG001_EN

Environment Attributes Main

Ambient Air Temperature For Operation	-10-70 °C, -10-70 °C
Take Back	No
China Rohs Regulation	X
Silicon Free	Yes
Air Flow	free flow rate with standard filter: 300 m3/h at 50 Hzfree flow rate with standard filter: 350 m3/h at 60 Hz
Environmental Disclosure	ENVPEP110717EN
Ip Degree Of Protection	IP54
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP110717EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Carbon Footprint	2183.50396054968
Circularity Profile	ENVEOLI1107017EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2025-08-05
Psr Version	PSR-0008-ed3-EN-2023 10 19
