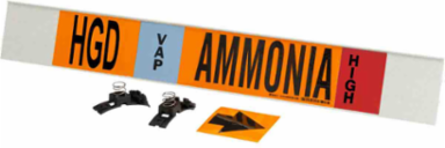

Brady 145934 HGD VAP AMMONIA HIGH Pipe Marker, 4" H x 24" W, Fits Pipes 8" Dia. or Larger
- MPN: 145934
- UPC: 754473547226
- PPN: BRD-145934
- UNSPSC: 55121737
CAD
$76.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Pipe markers comply with IIAR Bulletin 114, which modifies the color scheme from yellow to orange to meet ANSI's A13.1 (2007) revised standard.
Features
- IIAR pipe markers should include: the marker body (AMMONIA), physical state, pressure level, directional arrows, and an ammonia piping abbreviation

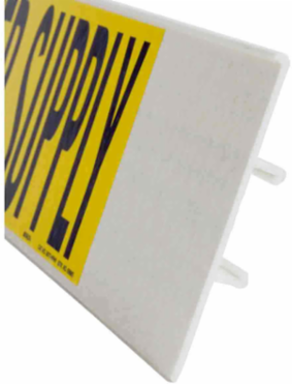

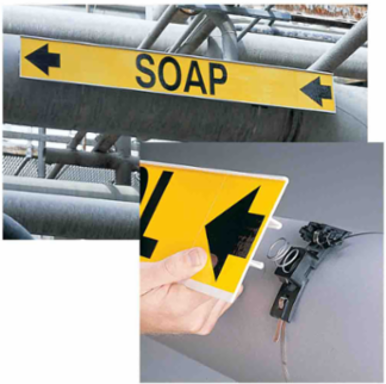

- Style HPHV (High Performance High Visibility) pipe markers are supplied on a fiberglass plastic carrier and are ideal for 8" and larger pipe diameters
- Designed for use on rusty, dirty, wet or rough surfaces and can be used indoors or outdoors on horizontal and vertical pipes
- Pipe marker includes directional arrows
Specifications
Key Specifications
- Applications
- Pipe and Valve Marking
- Cards or Sheets per Pack
- 1
- Combined IIAR Legend
- AMMONIA HGD VAP HIGH
- IIAR Legend
- AMMONIA
- IIAR Pressure Level
- HIGH
- Language
- English
- Pipe Marker Style
- HPHV
- Brady Material Number
- B-681/B-883
- Laminated
- Laminated
- Material Properties
- High Visibility; Rigid
- SAP B-Number
- B-681/B-883
- Character Height (mm/cm/m)
- 88.9 mm
- Dimensions (Metric)
- 101.6 mm H
- Height (in/ft/yd)
- 4 in
- Maximum Service Temperature °C
- 110 °C
- Minimum Outside Pipe Diameter (in/ft/yd)
- 8 in
- Minimum Service Temperature °C
- -40 °C
- Overall Size
- Fits Pipes 8" Dia. or larger
- Sign Size-General
- 4 in x 24 in
- Width (in/ft/yd)
- 24 in
Brand NameBrady®
ColorBlack/Blue/Red on Orange
Enables Industry ComplianceIIAR Standard - Bulletin 114
IIAR PhaseVAP
IIAR System AbbreviationHGD
Pipe Marker Mounting StyleFiberglass Carrier
Primary Noun, Basic FunctionPipe Marker
Indoor or Outdoor UseOutdoor Use
MaterialPolyester Overlaminate on Fiberglass Plastic Carrier
Resistance PropertiesAbrasion-Resistant; Chemical-Resistant
Character Height (in/ft/yd)3.5 in
Dimensions4 in H x 24 in W
Dimensions 24 in H x 24 in W
Height (mm/cm/m)101.6 mm
Maximum Service Temperature °F230 °F
Minimum Outside Pipe Diameter (mm/cm/m)203.2 mm
Minimum Service Temperature °F-40 °F
Roll/Tape Size (in/ft/yd)4 in H x 24 in W
SizeHPHV
Width (mm/cm/m)60.96 cm
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- Unavailable
- EU RoHS Compliant
- Yes
Contains CA PROP 65 SubstanceNo
EU RoHS CompliancePass 2011/65/EU
SDS Safety Data Sheet requiredNo = MSDS/SDS is not required
