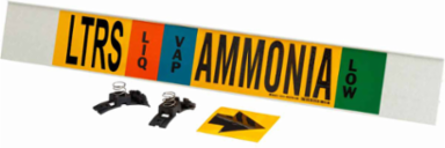

Brady 59934 LTRS VAP AMMONIA LOW Pipe Marker, 4" H x 24" W, Fits Pipes 8" Dia. or Larger
- MPN: 59934
- UPC: 754473599348
- PPN: BRD-59934
- UNSPSC: 55121737
CAD
$76.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
These IIAR-compliant pipe markers come with the traditional yellow background and are recommended for use in labeling ammonia piping and its contents.
Features
- IIAR pipe markers should include: the marker body (AMMONIA), physical state, pressure level, directional arrows, and an ammonia piping abbreviation
- Style HPHV (High Performance High Visibility) pipe markers are supplied on a fiberglass plastic carrier and are ideal for 8" and larger pipe diameters
- Designed for use on rusty, dirty, wet or rough surfaces and can be used indoors or outdoors on horizontal and vertical pipes
- Pipe marker includes directional arrows
Specifications
Key Specifications
- Applications
- Pipe and Valve Marking
- Color
- Black/Blue/Green/Orange on Yellow
- Enables Industry Compliance
- ANSI A13.1-2007
- IIAR Phase
- LIQ/VAP
- IIAR System Abbreviation
- LTRS
- Pipe Marker Mounting Style
- Fiberglass Carrier
- Pre-Printed Areas on Label
- IIAR Legend
- Brady Material Number
- B-681/B-883
- Laminated
- Laminated
- Material Properties
- High Visibility; Rigid
- SAP B-Number
- B-681/B-883
- Character Height (in/ft/yd)
- 3.5 in
- Dimensions
- 4 in H x 24 in W
- Dimensions 2
- 4 in H x 24 in W
- Height (mm/cm/m)
- 101.6 mm
- Maximum Service Temperature °F
- 230 °F
- Minimum Outside Pipe Diameter (mm/cm/m)
- 203.2 mm
- Minimum Service Temperature °F
- -40 °F
- Roll/Tape Size (in/ft/yd)
- 4 in H x 24 in W
- Size
- HPHV
- Width (mm/cm/m)
- 60.96 cm
Brand NameBrady®
Combined IIAR LegendAMMONIA LTRS LIQ/VAP LOW
IIAR LegendAMMONIA
IIAR Pressure LevelLOW
LanguageEnglish
Pipe Marker StyleHPHV
Primary Noun, Basic FunctionPipe Marker
Indoor or Outdoor UseOutdoor Use
MaterialPolyester Overlaminate on Fiberglass Plastic Carrier
Resistance PropertiesAbrasion-Resistant; Chemical-Resistant
Average Outdoor Durability5 to 8 Years
Character Height (mm/cm/m)88.9 mm
Dimensions (Metric)101.6 mm H
Height (in/ft/yd)4 in
Maximum Service Temperature °C110 °C
Minimum Outside Pipe Diameter (in/ft/yd)8 in
Minimum Service Temperature °C-40 °C
Overall SizeFits Pipes 8" Dia. or larger
Sign Size-General4 in x 24 in
Width (in/ft/yd)24 in
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- Unavailable
- EU RoHS Compliance
- Not Applicable
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantNo
