Brady 57965 HGD VAP AMMONIA HIGH Pipe Marker, 9" H x 8" W, Fits Pipes 1.5" Dia. Thru 2.375" Dia.
- MPN: 57965
- UPC: 754473579654
- PPN: BRD-57965
- UNSPSC: 55121737
CAD
$17.39
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
These IIAR-compliant pipe markers come with the traditional yellow background and are recommended for use in labeling ammonia piping and its contents.
Features
- IIAR pipe markers should include: the marker body (AMMONIA), physical state, pressure level, directional arrows, and an ammonia piping abbreviation
- Style I wrap-around pipe markers fit pipes with outside diameter of 1-1/2 in. to 2-3/8 in.

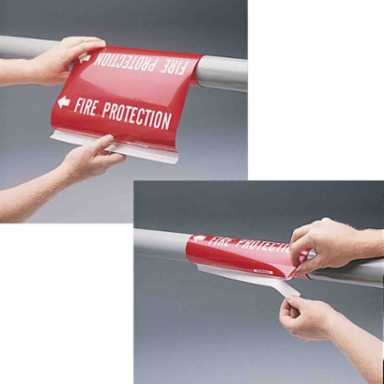

- B-689 coiled pipemarkers are designed for marking rusty, dirty, wet or rough pipes where pressure sensitive labels cannot be used
- Pipe marker includes directional arrows
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Pipe and Valve Marking
- Color
- Black/Blue/Red on Yellow
- Compatible Surface Types
- Curved; Rough
- IIAR Legend
- AMMONIA
- IIAR Pressure Level
- HIGH
- Language
- English
- Pipe Marker Style
- I
- Primary Noun, Basic Function
- Pipe Marker
- Self-Adhesive Pipe Marker Format
- Die-Cut on Cards
- Indoor or Outdoor Use
- Outdoor Use
- Laminated
- Polyester Overlaminate
- Material Properties
- Self-laminating
- SAP B-Number
- B-689
- Character Height (in/ft/yd)
- 0.75 in
- Dimensions
- 9 in H x 8 in W
- Dimensions 2
- 9 in H x 8 in W
- Height (mm/cm/m)
- 228.6 mm
- Maximum Outside Pipe Diameter (mm/cm/m)
- 60.33 mm
- Maximum Service Temperature °F
- 248 °F
- Minimum Outside Pipe Diameter (mm/cm/m)
- 38.1 mm
- Minimum Service Temperature °F
- -40 °F
- Roll/Tape Size (in/ft/yd)
- 9 in H x 8 in W
- Size
- I
- Thickness (mm/cm/m)
- 0.152 mm
- Width (mm/cm/m)
- 203.2 mm
Brand NameBrady®
Combined IIAR LegendAMMONIA HGD VAP HIGH
Enables Industry ComplianceANSI A13.1-2007
IIAR PhaseVAP
IIAR System AbbreviationHGD
Pipe Marker Mounting StyleWrap Around
Pre-Printed Areas on LabelIIAR Legend
Printer and Label ApplicationsPipe Marker
Brady Material NumberB-689
Label PropertiesHarsh Environment Labels
MaterialCoiled Plastic
Resistance PropertiesAbrasion-Resistant; Chemical-Resistant; Humidity-Resistant; Weather-Resistant
Average Outdoor Durability5 to 8 Years
Character Height (mm/cm/m)19.1 mm
Dimensions (Metric)228.6 mm H
Height (in/ft/yd)9 in
Maximum Outside Pipe Diameter (in/ft/yd)2.375 in
Maximum Service Temperature °C120 °C
Minimum Outside Pipe Diameter (in/ft/yd)1.5 in
Minimum Service Temperature °C-40 °C
Overall SizeFits Pipes 1.5" Dia. Thru 2.375in Dia.
Sign Size-General9 in x 8 in
Thickness (in/ft/yd)0.006 in
Width (in/ft/yd)8 in
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- DOT Regulated Product
- No = not regulated by DOT
- EU RoHS Compliant
- No
Contains CA PROP 65 SubstanceNo
EU RoHS ComplianceNot Applicable
SDS Safety Data Sheet requiredNo = MSDS/SDS is not required
