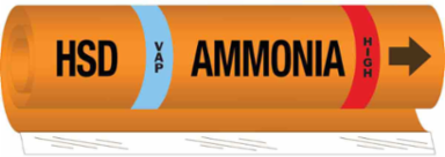

Brady 145781 HSD VAP AMMONIA HIGH Pipe Marker, 9" H x 8" W, Fits Pipes 1.5" Dia. Thru 2.375" Dia.
- MPN: 145781
- UPC: 754473545734
- PPN: BRD-145781
- UNSPSC: 55121737
CAD
$17.39
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Pipe markers comply with IIAR Bulletin 114, which modifies the color scheme from yellow to orange to meet ANSI's A13.1 (2007) revised standard.
Features
- IIAR pipe markers should include: the marker body (AMMONIA), physical state, pressure level, directional arrows, and an ammonia piping abbreviation
- Style I wrap-around pipe markers fit pipes with outside diameter of 1-1/2 in. to 2-3/8 in.
- B-689 coiled pipemarkers are designed for marking rusty, dirty, wet or rough pipes where pressure sensitive labels cannot be used
- Pipe marker includes directional arrows
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Pipe and Valve Marking
- Cards or Sheets per Pack
- 1
- Combined IIAR Legend
- AMMONIA HSD VAP HIGH
- Enables Industry Compliance
- IIAR Standard - Bulletin 114
- IIAR Phase
- VAP
- IIAR System Abbreviation
- HSD
- Pipe Marker Mounting Style
- Wrap Around
- Primary Noun, Basic Function
- Pipe Marker
- Self-Adhesive Pipe Marker Format
- Die-Cut on Cards
- Indoor or Outdoor Use
- Outdoor Use
- Laminated
- Polyester Overlaminate
- Material Properties
- Self-laminating
- SAP B-Number
- B-689
- Character Height (in/ft/yd)
- 0.75 in
- Dimensions
- 9 in H x 8 in W
- Dimensions 2
- 9 in H x 8 in W
- Height (mm/cm/m)
- 228.6 mm
- Maximum Outside Pipe Diameter (mm/cm/m)
- 60.33 mm
- Maximum Service Temperature °F
- 248 °F
- Minimum Outside Pipe Diameter (mm/cm/m)
- 38.1 mm
- Minimum Service Temperature °F
- -40 °F
- Roll/Tape Size (in/ft/yd)
- 9 in H x 8 in W
- Size
- I
- Thickness (mm/cm/m)
- 0.152 mm
- Width (mm/cm/m)
- 203.2 mm
Brand NameBrady®
ColorBlack/Blue/Red on Orange
Compatible Surface TypesCurved; Rough
IIAR LegendAMMONIA
IIAR Pressure LevelHIGH
LanguageEnglish
Pipe Marker StyleI
Printer and Label ApplicationsPipe Marker
Brady Material NumberB-689
Label PropertiesHarsh Environment Labels
MaterialCoiled Plastic
Resistance PropertiesAbrasion-Resistant; Chemical-Resistant; Humidity-Resistant; Weather-Resistant
Average Outdoor Durability5 to 8 Years
Character Height (mm/cm/m)19.1 mm
Dimensions (Metric)228.6 mm H
Height (in/ft/yd)9 in
Maximum Outside Pipe Diameter (in/ft/yd)2.375 in
Maximum Service Temperature °C120 °C
Minimum Outside Pipe Diameter (in/ft/yd)1.5 in
Minimum Service Temperature °C-40 °C
Overall SizeFits Pipes 1.5" Dia. Thru 2.375in Dia.
Sign Size-General9 in x 8 in
Thickness (in/ft/yd)0.006 in
Width (in/ft/yd)8 in
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- EU RoHS Compliance
- Pass 2011/65/EU
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
EU RoHS CompliantYes
