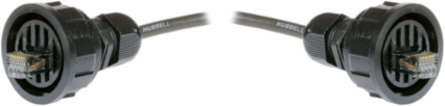

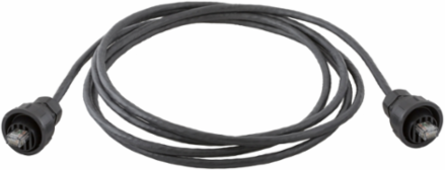

Hubbell Premise Wiring HI645EE HI-IMPACT Patch Cord 45' Length Cat 6 RJ-45, 8-Conductor, #24 AWG
- MPN: HI645EE
- UPC: 662620856100
- PPN: HBL-HI645EE
- UNSPSC: 43223303
CAD
$363.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
HI-IMPACT Patch Cord, Cat 6 RJ-45 to Cat 6 RJ-45, 45' Length
Features
- HI-IMPACT Patch Cord
- Cat 6 RJ-45 to Cat 6 RJ-45
- 45' Length
- Standard Product
Specifications
Key Specifications
- Country of Origin
- United States
- Industry Standard(s)
- TIA-568-C.2 Category 6 Component;UL and cUL Listed
- Conductor Stranding
- Stranded
- Number of Conductors
- 8-Conductor
- Plug Type
- RJ45
- Standard
- TIA-568-C.2 Category 6 Component;UL and cUL Listed
- Wire Size
- #24 AWG
- Connector Type
- Standard C6 RJ45 Both Ends
- Class Code
- A60
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- HI5E45EE
- Material - Insulation
- Flame Redardant PVC
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 5.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 5
- Lowest Level UOM
- Each
Width0.845 in
Attenuation.1dB
Length540 in
Outside Diameter0.23
Special FeaturesStandard Product
Temperature RatingPer TIA
Conductor TypeCopper
Number Of Conductors8-Conductor
Description - InvoiceP-CORD, HI-IMPACT,6,BK,IE-IE,45'
Harmonization Code8544422000
MSDS FlagNo
Sub Class CodeHPWALL2
Material - JacketFlame Redardant PVC
BOX SIZE0.000x0.000x0.000 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack662620856100
Each - Pack DescriptionEach
NAICS Code335999B100
