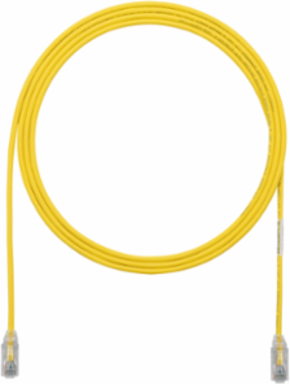

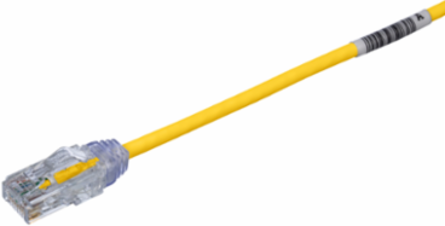

Panduit UTP28SP4YL Cat 6 28 AWG UTP Copper Patch Cord, 4 ft, Yellow
- MPN: UTP28SP4YL
- UPC: 074983652099
- PPN: PAN-UTP28SP4YL
- UNSPSC: 43223303
CAD
$24.75
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The TX6-28™ Cat 6 UTP Patch Cord is a 4-Foot, 0.150-inch (3.8mm) diameter, Yellow cord constructed of 28 AWG, unshielded, twisted pair, stranded, CM/LSZH cable with high-performance modular plugs. Its compact 28 AWG design simplifies installation and management. The tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico, China, Romania |
|---|---|
| Product Segment | EDI-ENT |
| Minimum Operating Temperature (°C) | -10 |
| Maximum Storage Temperature (°F) | 158 |
| Color | Yellow |
| Sub Brand | Pan-Net® |
| Overall Length (ft.) | 4 |
| Minimum Storage Temperature (°C) | -40 |
| Application | (1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), 10GBASE-T (10Gigabit Ethernet over limited distances as specified in the industry 10GBASE-T standards) (2) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM Token ring 4/16 (3) Digital video and broadband/baseband analog video (4) Voice over Internet Protocol (VoIP) |
| IEC Variant | 60603-7 |
| Boot Color | Clear |
| Flammability Rating | CM/LSZH |
| Cable Construction | U/UTP |
| RapidID™ Enabled | Yes |
| Minimum Operating Temperature (°F) | 14 |
| Product Type | Patch Cord |
| Conductor Type | Stranded |
| Shield Type | Unshielded (UTP) |
| Any Reason Not to Sell | N |
|---|---|
| Maximum Storage Temperature (°C) | 70 |
| Maximum Operating Temperature (°F) | 140 |
| Connector 2 Type | Modular Plug |
| Plug Type | 8 Position |
| PoE Compatibility | PoE/PoE+/PoE++ |
| Nominal Cable Outside Diameter (mm) | 3.8 |
| Minimum Storage Temperature (°F) | -40 |
| Connector 1 Type | Modular Plug |
| Jacket Material | LSZH Material |
| Maximum Operating Temperature (°C) | 60 |
| Wiring Scheme | T568B |
| Performance Level | Category 6 |
| Overall Length (m) | 1.22 |
| Nominal Cable Outside Diameter (In.) | 0.15 |
| Plug Housing Material | Polycarbonate |
| Conductor Gauge | 28 AWG |
Packaging Details
| UPC | 07498365209 |
|---|---|
| Standard Package Volume Ft3 | 0.0177 |
| Std Package Height In | 1 |
| Std Package Length In | 6.95 |
| Std Package Width In | 6.15 |
| Std. Pkg. UOM | Piece |
| Std. Pkg. Qty. | 1 |
| Standard Carton Volume Ft3 | 0.1773 |
| Std Carton Height In | 3.95 |
| Std Carton Length In | 9.5 |
| Std Carton Width In | 7.75 |
| Std Ctn Qty | 10 |
| EAN | 00074983652099 |
| California Pro65 Cancer | No |
| Mercury Content Indicator | N |
| Min Order Qty | 10.0000 |
| Pallet Volume | 39.013333 |
| RoHS Compliant | Compliant |
| GTIN Package | 00074983652099 |
|---|---|
| Standard Package Weight Pounds | 0.1100 |
| Std Package Height MM | 25.4 |
| Std Package Length MM | 176.53 |
| Std Package Width MM | 156.21 |
| UOM EA PK | EA |
| GTIN Carton | 50074983652094 |
| Standard Carton Weight Pounds | 1.1000 |
| Std Carton Height MM | 100.33 |
| Std Carton Length MM | 241.3 |
| Std Carton Width MM | 196.85 |
| Min. Order UOM | Piece |
| REACH Status | N |
| ARRA Compliant | Y |
| Hazardous Material Flag | N |
| Pallet Quantity | 2,200 |
| Pallet Weight | 242.0000 |
