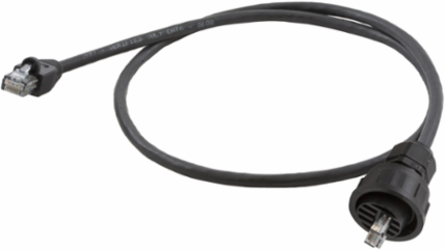

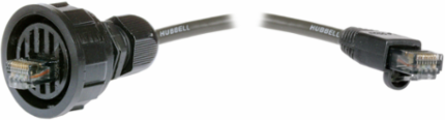

Hubbell Premise Wiring HI605AE HI-IMPACT Patch Cord Cat 6 RJ-45 to Standard RJ-45 5 Inch Length
- MPN: HI605AE
- UPC: 662620855899
- PPN: HBL-HI605AE
- UNSPSC: 43223303
CAD
$107.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
HI-IMPACT Patch Cord, Cat 6 RJ-45 to Standard RJ-45, 5' Length
Features
- HI-IMPACT Patch Cord
- Cat 6 RJ-45 to Standard RJ-45
- 5' Length
- Standard Product
Specifications
Key Specifications
- Country of Origin
- United States
- Industry Standard(s)
- TIA-568-C.2 Category 6 Component;UL and cUL Listed
- Conductor Stranding
- Stranded
- Number of Conductors
- 8-Conductor
- Plug Type
- RJ45
- Standard
- TIA-568-C.2 Category 6 Component;UL and cUL Listed
- Wire Size
- #24 AWG
- Connector Type
- Hi-Impact Cat 6 RJ45 Both Ends
- Class Code
- A60
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- HI5E05AE;EVNSLI06-0005
- Material - Insulation
- Flame Redardant PVC
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 4.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 20 EA
- Each - Pack Description
- Each
- Pallet Weight
- 0.000 lb.
Width8.000 in
Attenuation.1dB
Length60 in
Outside Diameter0.23
Special FeaturesStandard Product
Temperature RatingPer TIA
Conductor TypeCopper
Number Of Conductors8-Conductor
Description - InvoiceP-CORD, HI-IMPACT,6,BK,RJ45-IE,5'
Harmonization Code8544422000
MSDS FlagNo
Sub Class CodeHPWALL2
Material - JacketFlame Redardant PVC
BOX SIZE5.000x8.000x18.000 (in)
Carton - Number of Sub Packs20
Carton - SCC-14 Next Lower Level Sub Pack662620855899
Case Weight4.000 lb.
Lowest Level UOMEach
NAICS Code335999B100
