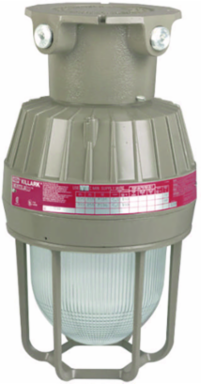

Explosion Proof 100W HPS Ceiling Mount, 3/4 Inch Hub Size, Powder Epoxy Finish
Killark

Killark EMS100X2 Explosion Proof 100W HPS Ceiling Mount, 3/4 Inch Hub Size, Powder Epoxy Finish

  • MPN: EMS100X2
  • UPC: 783936136196
  • PPN: HBL-EMS100X2

CAD

$1807.48

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

The EM series Explosion Proof medium base fixture is designed for low bay applications. This fixture is made with a cast copper-free aluminum housing and mount that is powder epoxy powder coat painted for extra corrosion resistance, making them suitable for harsh and hazardous environments. The EM Series is factory sealed so no external seal is required in Explosive environments.

Features

  • Four light sources—Incandescent, compact fluorescent, high pressure sodium and metal halide
  • Mounting choice—Pendant, ceiling, 25˚ stanchion or 90˚ wall mount, all with “wireless” design that allows fast, easy fixture installation
  • Factory sealed—No external seal needed. Simply wire mounting cap and thread on fixture to install
  • Compact size—Medium base incandescent and HID lamps, plus PL fluorescent lamps allow smaller fixture design
  • Corrosion resistant—Copper-free aluminum die-cast construction.
  • Baked powder epoxy finish, electrostatically applied.
  • Exposed hardware is 316 grade stainless steel.

Documentation & Downloads

Specifications

Key Specifications

Finish Type
Powder Epoxy Paint
Light Source
High Pressure Sodium
Mounting Type
Ceiling
Series
EM
Hub Size
3/4"
Voltage Rating
Quad - 120/277/347/480 VAC
Lamp TypeMedium Base
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Optic TypeGlass Globe - Fluted
UPC783936136196
Frequency Rating60 Hz
Wattage100 W
