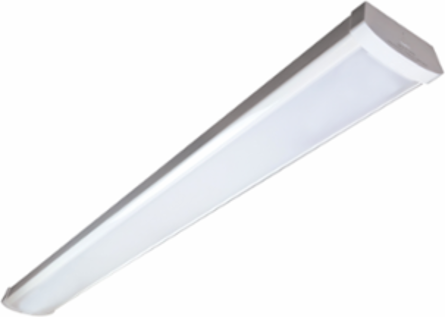

Rab 081617 Surface Mount Wrap LED SMW4N-LED48 48W 120-277V Variable Temp White Finish Dimmable Frosted Glass Lens

Surface Mount Wrap LED SMW4N-LED48 48W 120-277V Variable Temp White Finish Dimmable Frosted Glass Lens
  • MPN: 081617
  • UPC: 061184816177
  • PPN: RAB-081617

Spec sheet

In Stock

Company Stock:

00

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$76.70/ EA

Description

The SMW2N-LED and SMW4N-LED Surface Mount Wraps are 2' and 4' linkable linear fixtures for indoor use. This wraparound luminaire is easy to install and features a link connector for combining multiple fixtures in a row.

Specifications

Watts
46 W
Dimmable
Yes
Lumens
5800 lm
LED Life
54,000 Hours
THD
8.1%
Surge Protection
3 kV
Maximum Amperage Draw
0.41 A (120 V)
Efficacy
125.4 lm/W
Weight
3.65 lbs
Finish
White
Certifications
ETL Listed, DLC Premium, DLC Standard
Voltage120-277 V
Color TemperatureSelectable 3500K/4000K/5000K
CRI85
Power Factor0.985
Operating Temperature Range-25 °C to 55 °C
IP RatingIP20
Beam Distribution110°
Dimensions48.7 in x 5.9 in x 2.4 in
MaterialSteel
LensFrosted Polycarbonate
Country of OriginChina
