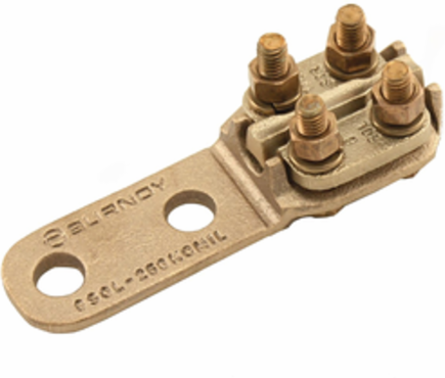

Cast Cu Alloy (Reversible Cap) Terminal, 1/0 Sol-500 kcmil, Bolted, Cable to Flat, 4 Pad Holes, Silicon Bronze H/W, For Cu Cable
Burndy

Burndy NAS3434N Cast Cu Alloy (Reversible Cap) Terminal, 1/0 Sol-500 kcmil, Bolted, Cable to Flat, 4 Pad Holes, Silicon Bronze H/W, For Cu Cable

  • MPN: NAS3434N
  • UPC: 781810002438
  • PPN: BUR-02001690
  • UNSPSC: 39121456

CAD

$130.88

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Cast Cu Alloy (Reversible Cap) Terminal, 1/0 Sol-500 kcmil, Bolted, Cable to Flat, 4 Pad Holes, Silicon Bronze H/W, For Cu Cable.

Features

  • High copper alloy reversible cap terminal for joining a wide range of cable to equipment pads
  • Tongue is side-formed to provide adequate clearance and terminal is designed for 1-wrench installation

Specifications

Key Specifications

Country of Origin
Mexico
Conductor - Connection Combination
Cable to Flat
Conductor - Copper Solid Size Range
1/0 AWG-4/0 AWG
Conductor - Copper Str Size Range
1/0 -500 kcmil
Conductor - Large Groove Min
250 kcmil
Conductor - Small Groove Min
1/0 sol
Dimension - B Length inch
2.38 in
Dimension - F Width Center to Center inch
1.75 in
Dimension - Height inch
2.05 in
Dimension - L Length Overall mm
143 mm
Dimension - N inch
0.62 in
Dimension - Width fraction
2-1/5 in
Dimension - Width mm
56 mm
One Wrench Installation
Y
Physical Attribute - Pad Alignment
Offset
Physical Attribute - Pad Orientation
Straight
Plating Type
Unplated
Standards - RoHS Compliance Status
EX
End Connection
Bolted
Sub Brand
SUBSTATION CONNECTOR
Conductor Type
CU C Str-Size;CU C Solid-Size
Number Of Conductors
1
Certification Agency
Proposition 65
Description - Invoice
COPPER TERMINAL, 2.20 IN W
Harmonization Code
8535908020
Lead Time
11 wk
Order Multiple
1 EA
Stock Indicator
S - Shelf Stock
UL Listed
No
Material - Hardware
DURIUM™ Silicon Bronze
BOX SIZE
4.800x4.900x6.250 (in)
Carton - Number of Sub Packs
1
Carton - SCC-14 Next Lower Level Sub Pack
00781810002438
Case - SCC-14 Next Lower Level Sub Pack
30781810002439
Each - Pack Description
Each
Package - Gross Weight per Pack
7.36 lb.
Package - Number of Sub Packs
4
Package - SCC-14 Next Lower Level Sub Pack
00781810002438
Package Height
4.5 in
Package Quantity
4 EA
Package Width
4.56 in
Pallet Weight
0.000 lb.
NAICS Code
3359319102
Clamping Element DesignBody And Cap
Conductor - Copper Solid Size1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG
Conductor - Copper Str Size1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil
Conductor - Large Groove Max500 kcmil
Conductor - Small Groove Max4/0 str
Dimension - B Length fraction2-19/50 in
Dimension - D inch3.00 in
Dimension - Height fraction2-1/20 in
Dimension - Hole Size fraction9/16
Dimension - Length Overall inch5.62 in
Dimension - Pad Width inch3.00 in
Dimension - Width inch2.20 in
Width2.2 in
Physical Attribute - Number of Holes4
Physical Attribute - Pad Configuration3 x 3 - 4 holes
PlatedN
Product TypeMechanical
ApplicationSubstation
Number of Conductors1
TypeNAS
Connector TypeTerminal
ARRA CompliantYes
Class CodeB21
Freight Class Code16027000
Image Actual Or RepresentativeA
MSDS FlagNo
Replaced Catalog NumberNAS3434N
Sub Class CodeB21B0OF
MaterialCopper Alloy
Base Unit of MeasureEA
Carton - Gross Weight per Pack0.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units1
Each - Number of Sub Packs1
Lowest Level UOMEach
Package - GTIN - Package30781810002439
Package - Pack DescriptionPackage
Package - Total Units4 EA
Package Length6.13 in
Package Weight7.36 lb.
Pallet - GTIN - Package70781810002437
Standard Package Quantity4

Certifications

Buy American Compliant
Contact Manufacturer
cULus
No
UL Recognized
No
CSA ApprovedNo
ETLNo
