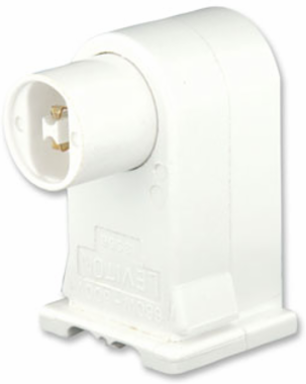

Leviton 13556-W High-Output Base, Double Contact Vert., Standard Fluorescent Lampholder, Pedestal, Slide-On, Plunger, For Power Grove and Jacketed Lamps, Quickwire 18AWG Solid or Str Tinned - White For Power Grove and Jacketed Lamps

High-Output Base, Double Contact Vert., Standard Fluorescent Lampholder, Pedestal, Slide-On, Plunger, For Power Grove and Jacketed Lamps, Quickwire 18AWG Solid or Str Tinned - White For Power Grove and Jacketed Lamps

MPN: 13556-W
UPC: 078477060926
PPN: LEV-13556-W

Spec sheet

Compare

Loading compare button...

Available to Order

Company Stock:

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$14.09/ EA

Qty:

Loading add to cart quantity...

Description

High-Output Base, Double Contact Vert., Standard Fluorescent Lampholder, Pedestal, Slide-On, Plunger, For Power Grove and Jacketed Lamps, Quickwire 18AWG Solid or Str Tinned - White For Power Grove and Jacketed Lamps

Specifications

Mechanical Specifications

Availability: Distribution

Color: White

Contact Type: Plunger

Panel Thickness: 20 Ga. Panel

Wire Strip Length: 3/8 - 1/2 Inch

Body MaterialThermoset

Contact MaterialSilver-Plated Copper-Alloy

Mounting TypeSlide-ON

TerminationQuickwire 18AWG Solid or Str. Tinned

Product Features

Feature: For Power Grove and Jacketed Lamps

Lamp Contacts: Double Contact Vert.

Light Type: Fluorescent

Rated Wattage: 660W

Style Name: Pedestal

Warranty: 1 Year Limited

Lamp BaseHigh-Output

Lampholder TypeLinear

NotesFor Power Grove and Jacketed Lamps

Standards and CertificationsUL/CSA/NOM

Voltage1000 Volt

Standards and Certifications

CSA Certified: File LR-5863

UL Listed: File E5833

NOM Certified057

Specifications

Country of Origin: Mexico

RoHS CompliantTrue

Downloads
