Leviton

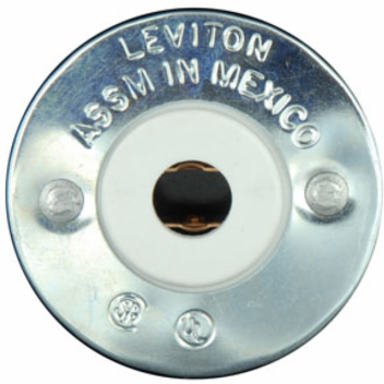

Leviton 517 Slimline Base, Single Pin, Standard Fluorescent Lampholder, Snap-In, Stationary, , Quickwire 18AWG Solid or Str Tinned - White

Slimline Base, Single Pin, Standard Fluorescent Lampholder, Snap-In, Stationary, , Quickwire 18AWG Solid or Str Tinned - White
  • MPN: 517
  • UPC: 078477107706
  • PPN: LEV-517

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$10.98/ EA

Description

Slimline Base, Single Pin, Standard Fluorescent Lampholder, Snap-In, Stationary, , Quickwire 18AWG Solid or Str Tinned - White

Specifications

Mechanical Specifications

Availability
Distribution
Color
White
Contact Type
Stationary
Panel Thickness
.035 - .050
Body MaterialThermoset
Contact MaterialCopper-Alloy
Mounting TypeN/A Snap-In
TerminationQuickwire 18AWG Solid or Str. Tinned

Product Features

Lamp Base
Slimline
Lampholder Type
Linear
Rated Wattage
660W
Voltage
600 Volt
Lamp ContactsSingle Pin
Light TypeFluorescent
Standards and CertificationsUL/CSA
Warranty1 Year Limited

Specifications

Country of Origin
Mexico
RoHS CompliantFalse

Standards and Certifications

CSA Certified
File LR-5863
UL ListedFile E5833

Downloads
