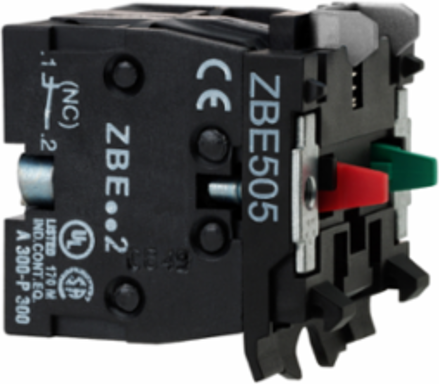

Schneider Electric ZBE505 Harmony XB4 High Power Switching Contact Block, 1 NO + 1 NC, IP20
Schneider Electric ZBE505 Harmony XB4 High Power Switching Contact Block, 1 NO + 1 NC, IP20
- MPN: ZBE505
- PPN: SCH-ZBE505
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$35.54/ EA
Description
This Harmony ZB, single contact block for high power switching uses screw-clamp terminals. It is compatible with Harmony XB4 and XB5 control and signaling units. This contact block, uses for high power switching contact, allows fast and easy replacement and configuration of specific control and signaling products. It is easily installed and replaced on XB4 and XB5 control and signalling units and connects to control circuits with simple screw-clamp connections. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. 1 million cycle high endurance under 6A load allows less maintenance and damage in your installation. It has clear color scheme for NO and NC contact block types. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Specifications
Environment
- Ambient Air Temperature For Operation
- -40-70 °C
- Vibration Resistance
- 5 gn 2-500 Hz)IEC 60068-2-6
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ambient Air Temperature For Storage-40-70 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1808008EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1808008EN
Complementary
- Mounting Of Block
- front mounting
- Short-Circuit Protection
- 10 A cartridge fuse gG IEC 60947-5-1
- Electrical Composition Code
- C15 1 )
- Net Weight
- 0.032 kg
- [Ui] Rated Insulation Voltage
- 300 VIEC 60947-1
- Mechanical Durability
- 10000000 cycles
Contacts Type And Composition1 NO + 1 NC
Positive Openingwith
[Ith] Conventional Free Air Thermal Current10 A IEC 60947-5-1
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-1
[Ie] Rated Operational Current1.1 A 125 V, DC-13, P300 IEC 60947-5-1
Specifications
- Contacts Usage
- high power switching contacts
- Contact Block Type
- double
- Ip Degree Of Protection
- IP20 IEC 60529
- Sale Per Indivisible Quantity
- 1
- Device Short Name
- ZBE
Range Of ProductHarmony XB4 || Harmony XB5
Product Or Component Typecontact block
Connections - Terminalsscrew clamp terminals, <= 1 x 2.5 mm² with cable end || screw clamp terminals, <= 2 x 1.5 mm² with cable end || screw clamp terminals, <= 2 x 2.5 mm² without cable end || screw clamp terminals, >= 1 x 0.5 mm² without cable end
Contact Operationslow-break
