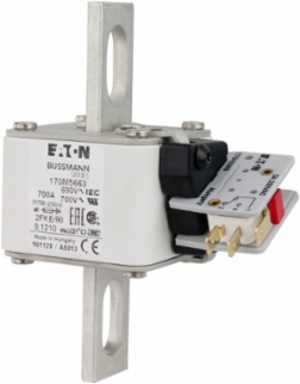

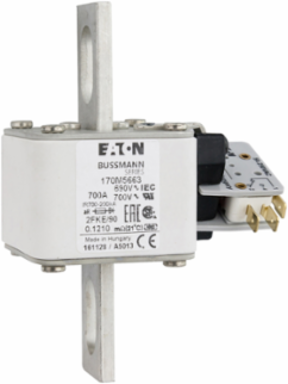

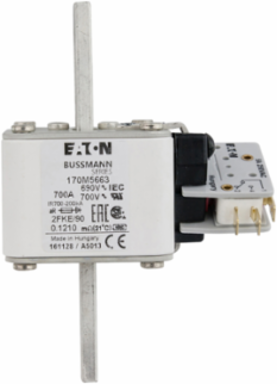

Bussmann 170M5663-G High Speed Fuse 700A RMS, 690V, 5.313 Inch Height, UL Recognized, IEC Rated
- MPN: 170M5663-G
- UPC: 051712236102
- PPN: BUS-170M5663-G
CAD
$1023.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
High Speed Fuse 700A RMS, 690V, 5.313 Inch Height, UL Recognized, IEC Rated
Specifications
Key Specifications
| Type | Square body, US style -FKE/- type K indicator for micro |
|---|---|
| Amperage Rating | 690V |
| Interrupt Rating | 200 kAIC RMS Symmetrical |
| Packaging Type | Standard |
| Pre Arc (I2T) | 60500 |
| Class | Class aR |
| Watt Losses | 95W |
| Height | 5.313 IN |
| Width | 3.75 IN |
| Application | DC common bus, DC drives, power converters/rectifiers |
|---|---|
| Voltage Rating | 700 Vac (UL), 690 Vac (IEC) |
| Fuse Indicator | Non Indicating |
| Current Rating | 700A RMS |
| Clearing (I2T) | Clearing at 660V: 405000 |
| Connection | Blade end X blade end |
| Accessories | Microswitch |
| Length | 2.313 IN |
| Weight | 1.324 LB |
