Bussman

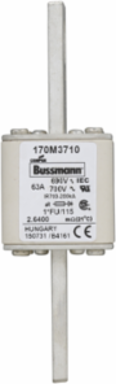

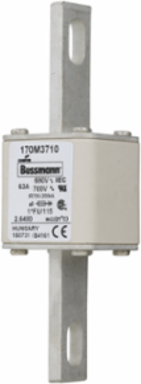

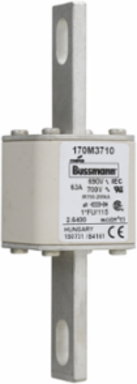

Bussman 170M3710 High Speed Fuse 63A RMS, 5.433 Inch Length, 200 kAIC Interrupt Rating

High Speed Fuse 63A RMS, 5.433 Inch Length, 200 kAIC Interrupt Rating
High Speed Fuse 63A RMS, 5.433 Inch Length, 200 kAIC Interrupt Rating
High Speed Fuse 63A RMS, 5.433 Inch Length, 200 kAIC Interrupt Rating
  • MPN: 170M3710
  • UPC: 051712256926
  • PPN: BUS-170M3710

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$479.38/ EA

Specifications

Specifications

Type
Square body, US style -FU/115 without indicator
Amperage Rating
63A
Interrupt Rating
200 kAIC
Packaging Type
Standard
Pre Arc (I2T)
115
Class
Class aR
Watt Losses
14W
Length
5.433 IN
Weight
1.6456 LB
ApplicationDC common bus, DC drives, power converters/rectifiers
Voltage Rating1000 Vac
Fuse IndicatorNon Indicating
Current Rating63A RMS
Clearing (I2T)Clearing at 660V: 770
ConnectionBlade end X blade end
Height2.087 IN
Width.315 IN
