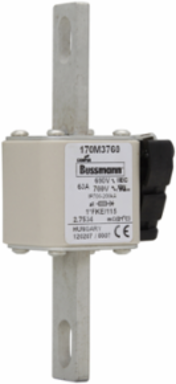

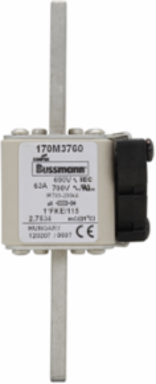

Bussmann 170M3760 High Speed Fuse 63A RMS, 1000 Vac, 5.433 Inch Length, Class aR
- MPN: 170M3760
- UPC: 051712257176
- PPN: BUS-170M3760
CAD
$529.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
High Speed Fuse 63A RMS, 1000 Vac, 5.433 Inch Length, Class aR
Specifications
Key Specifications
| Type | Square body, US style -FKE/115 type K indicator for micro |
|---|---|
| Amperage Rating | 63A |
| Interrupt Rating | 200 kAIC |
| Packaging Type | Standard |
| Pre Arc (I2T) | 115 |
| Class | Class aR |
| Watt Losses | 14W |
| Length | 5.433 IN |
| Weight | 1.6456 LB |
| Application | DC common bus, DC drives, power converters/rectifiers |
|---|---|
| Voltage Rating | 1000 Vac |
| Fuse Indicator | Non Indicating |
| Current Rating | 63A RMS |
| Clearing (I2T) | Clearing at 660V: 770 |
| Connection | Blade end X blade end |
| Height | 2.087 IN |
| Width | .315 IN |
