Bussman

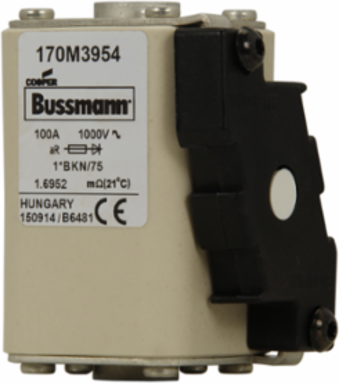

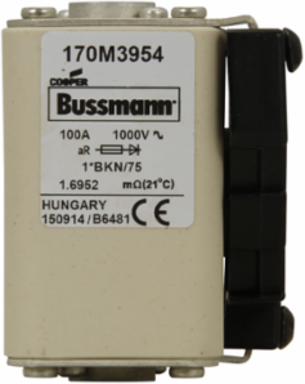

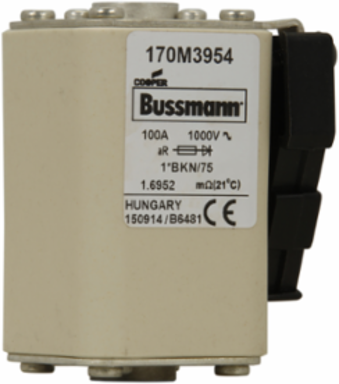

Bussman 170M3954 High Speed Fuse 100A RMS, 700 Vac, 5.433 Inch Length, Class aR

High Speed Fuse 100A RMS, 700 Vac, 5.433 Inch Length, Class aR
High Speed Fuse 100A RMS, 700 Vac, 5.433 Inch Length, Class aR
High Speed Fuse 100A RMS, 700 Vac, 5.433 Inch Length, Class aR
  • MPN: 170M3954
  • UPC: 051712678797
  • PPN: BUS-170M3954

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$636.65/ EA

Specifications

Specifications

Type
Square body flush end contact, -BKN/- type K indicator for micro
Amperage Rating
100A
Interrupt Rating
150 kAIC
Packaging Type
Standard
Pre Arc (I2T)
860
Class
Class aR
Mounting
Flush
Length
5.433 IN
Weight
1.6456 LB
ApplicationDC common bus, DC drives, power converters/rectifiers, reduced voltage starters
Voltage Rating700 Vac (UL), 690 Vac (IEC)
Fuse IndicatorNon Indicating
Current Rating100A RMS
Clearing (I2T)Clearing at 1000V: 5100
Watt Losses35W
Height2.087 IN
Width.315 IN
