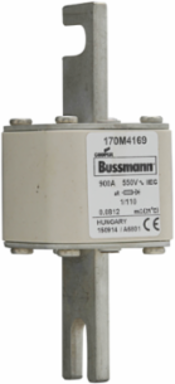

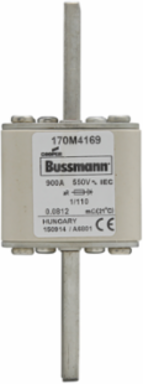

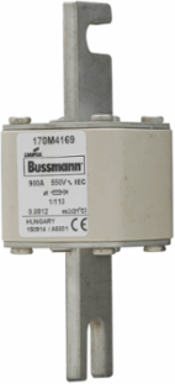

Bussmann 170M4169 High Speed Fuse 900A RMS 5.433 Inch x 2.087 Inch, 700 Vac, Class aR
- MPN: 170M4169
- UPC: 051712257954
- PPN: BUS-170M4169
CAD
$865.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
High Speed Fuse 900A RMS 5.433 Inch x 2.087 Inch, 700 Vac, Class aR
Specifications
Key Specifications
| Type | Square body -/110 visual for micro |
|---|---|
| Amperage Rating | 900A RMS |
| Interrupt Rating | 200 kAIC |
| Packaging Type | Standard |
| Clearing (I2T) | Clearing at 660V: 11500 |
| Class | Class aR |
| Mounting | Din 43 620 blade style |
| Length | 5.433 IN |
| Weight | 1.6456 LB |
| Application | DC common bus, DC drives, power converters/rectifiers |
|---|---|
| Voltage Rating | 700 Vac (UL), 690 Vac (IEC) |
| Fuse Indicator | Non Indicating |
| Pre Arc (I2T) | Current pre-arc: 155000 |
| Clearing Loss | 100 |
| Connection | Blade end X blade end |
| Height | 2.087 IN |
| Width | .315 IN |
