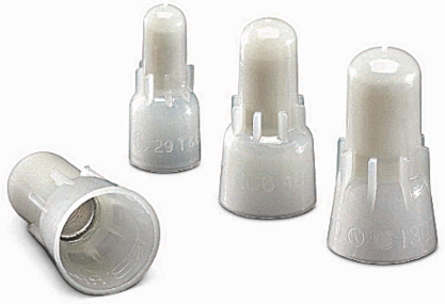

Sta-Kon RB4-HT Wire Joints
- MPN: RB4-HT
- UPC: 786210982151
- PPN: T-B-RB4-HT
CAD
$1.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
High Temperature Insulated Nylon Wire Joints for Minimum Wire Range (2) #18 to Maximum Wire Range (2) #16, White
Features
- Brazed copper sleeve prevents separation of connection during crimping. Internal serrations enable cold flow for increased conductivity and pull-out strength.
Documentation & Downloads
Specifications
Key Specifications
- Temperature Rating
- 150°C
- Voltage Rating
- 600V
Flammability RatingUL 94 V-2
Dimension Information
- A (inches)
- .36
B (inches).82
Certifications
- RoHS Compliance
- Yes
Packaging
- Inner Package
- 1000
- Package Width
- 10.5
- T&B Weight Per UOM
- 0.19 lbs. per 100
- Package Height
- 10.25
- Outer Package
- 10000
Order Multiple1000
T&B Sold in UOMEach
Package Length12.75
Package TypeStandard
Tooling
- Recommended Tool
- WT2000
Application ToolsWT2000, ERG4001, WT2130A, ERG4007
General
- Terminal Series
- RB
- Wire Range
- 2 (#18) - 2 (#16)
Insulation TypeInsulated Nylon
ColorWhite
