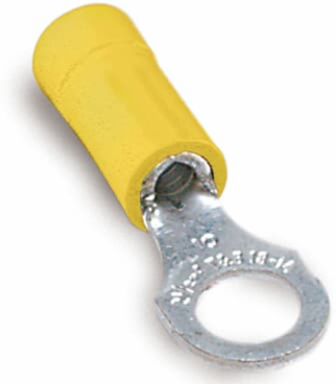

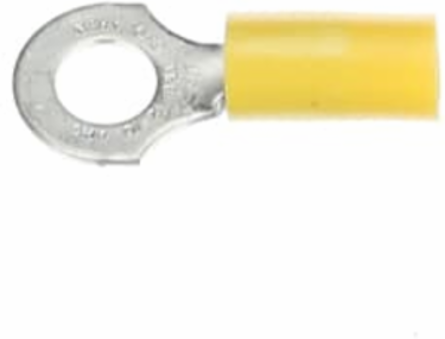

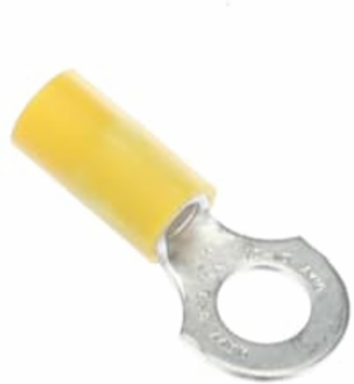

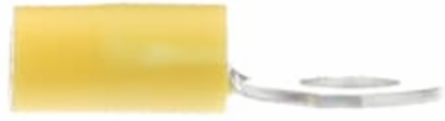

ABB 10RC-14 VINYL-INSULATED RING TERMINAL, LENGTH 1.16 INCHES, WIDTH .50 INCHES, MAXIMUM INSULATION .210, BOLT HOLE 1/4 INCH, WIRE RANGE #12-#10 AWG, COLOR YELLOW, COPPER, TIN PLATED

VINYL-INSULATED RING TERMINAL, LENGTH 1.16 INCHES, WIDTH .50 INCHES, MAXIMUM INSULATION .210, BOLT HOLE 1/4 INCH, WIRE RANGE #12-#10 AWG, COLOR YELLOW, COPPER, TIN PLATED
VINYL-INSULATED RING TERMINAL, LENGTH 1.16 INCHES, WIDTH .50 INCHES, MAXIMUM INSULATION .210, BOLT HOLE 1/4 INCH, WIRE RANGE #12-#10 AWG, COLOR YELLOW, COPPER, TIN PLATED
  • MPN: 10RC-14
  • UPC: 786210800462
  • PPN: T-B-10RC-14
  • UNSPSC: 39121432

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$1.52/ EA

Features

  • These terminals are self-insulated with a PVC insulation sleeve of extra length to give protection and relieve bending stress at wires flex point
  • Brazed seam barrel is serrated to obtain high pull-out value.

Specifications

Specifications

Color
Yellow
Standard
UL E9809
Wire Size
12-10 AWG
MaterialCopper
Voltage Rating600 V
TypeVinyl Insulated Ring Terminal
