Sta-Kon

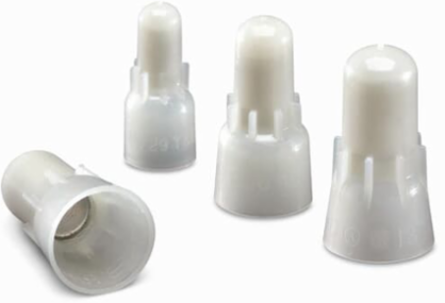

Sta-Kon RP7-HT HIGH TEMPERATURE RP7 WIRE JOINT

HIGH TEMPERATURE RP7 WIRE JOINT
  • MPN: RP7-HT
  • UPC: 786210982199
  • PPN: T-B-RP7-HT
  • UNSPSC: 39121452

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1.12/ EA

Description

Nylon Insulated High Temperature Crimp-On Wire Joint, Length 1.00 Inches, Width .53 Inches, Wire Range 3#14 - 4#12, Color White, 500 Pack

Specifications

Additional Information

Application
Provides terminating point for a group of wires running in one direction.
Color
White
Product Name
ELECTRICAL JOINT
Special Functions
Brazed copper sleeve prevents separation of connection during crimping. Internal serrations enable cold flow for increased conductivity and pull-out strength.
Temperature Range
150 °C
Brand / LabelSta-Kon
Effective Date20051109
Product TypeNylon Insulated Wire Joint
StandardsUL E9809

Classifications

WEEE Category
Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4677 >> Cable joint

Ordering

Country of Origin
United States (US)
Selling Unit of Measureeach
