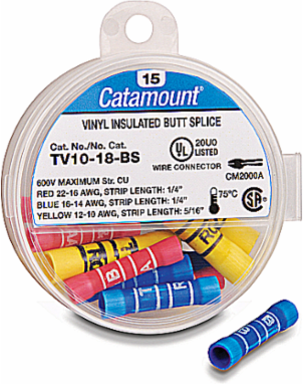

Catamount TV10-18-BS Insulated Vinyl Butt Splice Kit, Wire Range 22-16 to 12-10, 600V

MPN: TV10-18-BS
PPN: T-B-TV10-18-BS

Spec sheet

In Stock

Company Stock:

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$10.62/ EA

Qty:

Loading add to cart quantity...

Description

Insulated Vinyl Butt Splice Kit for Wire Range 22-16, 16-14, 12-10, Red/Blue/Yellow

Features

Expanded Entry. Brazed Seams (Yellow - Tubular). Internal Barrel Serrations.
Application Tools: WT112M

Specifications

Packaging

Inner Quantity: 5

Outer Quantity: 60

Weight Uom: 9.31 lbs. per 100

Inner Dimensions (inches)5.05x3.29x1.59

Outer Dimensions (inches)10.5x10x8

North American Specifications (UNSPSC)

UNSPSC: 39121449 Wire or cable compression splice

Brand Name: Catamount

Special Features: Expanded Entry. Brazed Seams (Yellow - Tubular). Internal Barrel Serrations.

Material: Copper

Color: Red/Blue/Yellow

Temperature Rating: 75 Degrees C

IGCC4669 Wire or cable compression splice

TypeButt Splice

StandardUL E9809

FinishElectro -Tin Plated

Voltage Rating600V
