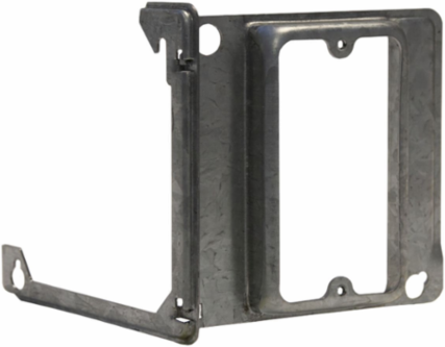

Raco 773H Hinged Mud Ring 1-Gang Raised 3/4 Inch, Dimensions 0.920 x 4.280 x 4.470 Inch, Steel
- MPN: 773H
- UPC: 050169927731
- PPN: HBL-773H
- UNSPSC: 39121304
CAD
$9.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Hinged Mud Ring 1-Gang, Raised 3/4 in.
Features
- Unique design allows for mud ring to be opened in the field

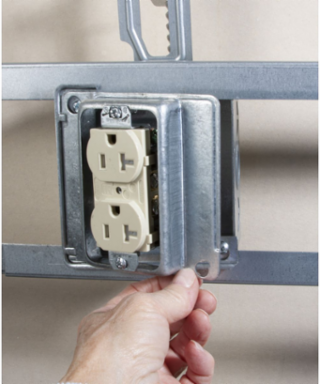

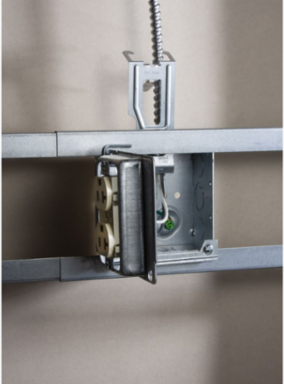

- Hinged design allows easy and quick access to install conduit connectors and wiring
- For use on 4" square boxes

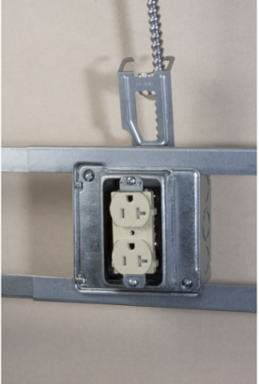

- Mounts to box without having to remove screws
- Raised fonts for 1/2" to 1-1/2" wall thickness
- Accepts all standard devices
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Dimensions
- 0.920 in x 4.280 in x 4.470 in
- Length
- 0.920 in
- Shape
- Square
- Standard
- UL Listed
- Weight
- 0.340 lb.
- Class Code
- D01
- Freight Class Code
- 06202000
- Image Actual Or Representative
- A
- Material
- Steel
- Raised Height
- 0.75 in
- BOX SIZE
- 4.875x10.750x9.000 (in)
- Carton - Number of Sub Packs
- 25
- Carton - SCC-14 Next Lower Level Sub Pack
- 00050169927731
- Pallet - GTIN - Package
- 70050169927730
- Pallet Length
- 48.000 in
- Pallet Width
- 42.000 in
Description - SlangHinged Mud Ring
Height4.470 in
Product TypeCover
Size0.920 in x 4.280 in x 4.470 in
TypeMud Ring
Width4.280 in
Description - InvoiceHINGED MUD RING 1G - RAISED 3/4
Harmonization Code7326908688
Sub Class CodeD01D010
Number of Gang(s)1-Gang
Base Unit of MeasureEA
Carton - Gross Weight per Pack8.980 lb.
Carton - Pack DescriptionCarton
Carton - Total Units25
Pallet Height49.420 in
Pallet Weight1257.300 lb.
NAICS Code3359326104
Certifications
- Certified Listed
- UL Listed
