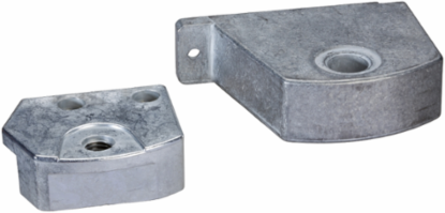

Schneider Electric NSYRSWH180 180 Hinges Set with M8 Screws, 140 mm Width, Zamak 5 Material
- MPN: NSYRSWH180
- PPN: SCH-NSYRSWH180
CAD
$120.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Enhance your electronic applications with this set of two 180 hinges, expertly crafted by Schneider Electric. Designed for versatility, these hinges are compatible with both the Spacial SF and Spacial SM ranges, making them ideal for various multi-purpose applications. Constructed from durable zamak 5 material, they provide reliable support with a width of 140 mm and depth of 155 mm, ensuring stability in any setup. With an 18-month warranty and a carbon footprint of just over 10 kg CO2 equivalent across their lifecycle, these hinges not only deliver functionality but also reflect a commitment to environmental responsibility.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain, France
- Width
- 5.51 in
Height1.5 in
Depth155 mm
Important Information Attributes
- Device Application
- electronic application, multi-purpose
- Carbon Footprint Of The Distribution Phase [A4]
- 0.273347565, 0.3 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.31486227, 0.3 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- kg CO2 eq., 0
- Local Publishable Date
- 2024-10-07
- Stocking Flag
- Y
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1916
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Device Composition
- fixing elements2 hinge
- Fixing Mode
- by screws 19" swing rack
- Mounting Support
- swing rack
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quantity Per Set
- set of 1
- Returnability
- No
- Sustainable Packaging
- No
- Pep Code
- ENVPEP1109023EN
- Pep Verification Date
- 2023-03-30
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Recyclability Potential In %
- 98
- Height Useful
- 38 mm
- Width Real
- 140 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8302106060
Enclosure Nominal Dimensions-, -
Carbon Footprint Of The End-of-life Phase [C1 To C4]3 kg CO2 eq., 3.338203598
Carbon Footprint Of The Manufacturing Phase [A1 To A3]6 kg CO2 eq., 6.170068221
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Product Kit IdentifierN
Energy Efficiency OptimizedFalse
Materialzamak 5
Operating Angle180 °
Product Or Component Typehinge
RangeSpacial
Software Versionv5.9.4
Total Lifecycle Carbon Footprint10 kg CO2 eq.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionProtect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; FR
Height Nominal38 mm
Width Nominal140 mm
Accessory / Separate Part Categoryenclosure accessory
Package Weight(Lbs)1.420 kg
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 10.09648165
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1109023EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1109023EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-03-30
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- hinge
ETIM
- ETIM 8
- EC002620
ETIM 9EC002620
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
