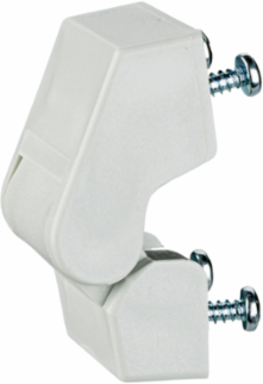

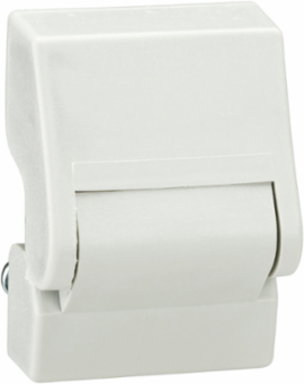

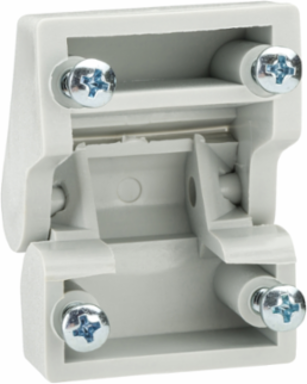

Schneider Electric NSYBE27G Plastic External Hinges Set of 2 for PanelSeT PLS Boxes, 180 Opening Angle
- MPN: NSYBE27G
- PPN: SCH-NSYBE27G
CAD
$17.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

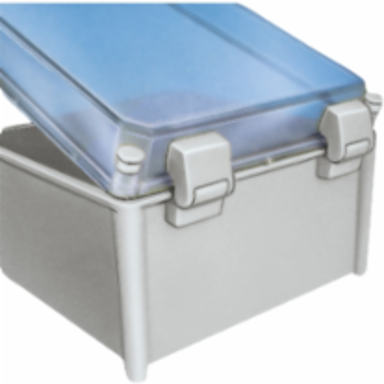

Thalassa PLS external hinges for PLS box. Multi-purpose application. Fixing mode by element - between rear and cover location. Set of 2 plastic. Made in plastic.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Spain |
|---|
Physical Attributes
| Color | Gray RAL 7035) |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Enclosure Nominal Dimensions | -, - |
| Local Publishable Date | 2026-04-30 |
| Stocking Flag | Y |
| Weee Scope | Out |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2051 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Device Application | multi-purpose |
| Energy Efficiency Optimized | False |
| Material | plastic |
| Operating Angle | 180 ° |
| Product Or Component Type | hinge |
| Range | PanelSeT |
| Sustainable Packaging | No |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8302106090 |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Composition | fixing elements2 x hinge |
| Fixing Mode | by fixing element - between rear and cover |
| Opening Mechanism | external |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Quantity Per Set | set of 2 |
| Returnability | No |
| Pep Code | ENVPEP1109021EN |
| Package Weight(Lbs) | 71.000 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Environmental Disclosure | ENVPEP1109021EN |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Recycled Metal Content At Cr Level | 0 % |
|---|---|
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP1109021EN |
General Attributes
| Product Or Component Type | hinge |
|---|
ETIM
| ETIM 8 | EC001167 |
|---|
| ETIM 9 | EC001167 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
