Killark

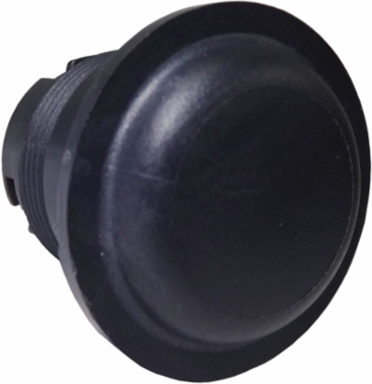

Killark HKHCP HKH Cover Device Plug, NEMA Rating 3, 4, 4X, 12, 13, 120-277 VAC, Plastic

HKH Cover Device Plug, NEMA Rating 3, 4, 4X, 12, 13, 120-277 VAC, Plastic
  • MPN: HKHCP
  • UPC: 783936122113
  • PPN: HBL-HKHCP

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$50.31/ EA

Description

HKH Cover Device Plug

Features

  • Actuator for use with HKH Din Rail and Panel Mounted contact blocks for Type 3, 4, 4X, 12, 13 and IP66 applications.
  • Killark HKH HAZCON™ Series Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications, ON/OFF functions for Lighting Circuits and more. Utilized in Class 1 Division 2, Class 1 Zone 1 areas where Type 3, 4, 4X, 12 and 13 weather-ingress ratings are required for indoor and outdoor use. Certified for use in the European Union with ratings for IECEx and ATEX in addition to IP66 water ingress protection.

Specifications

Specifications

Country of Origin
CN
Operating Temperature Range Celcius
-40°C to 55°C
Action
Plug
ARRA Compliant
Contact Manufacturer
Description - Invoice
PLUG, HKH COVER DEVICE
Harmonization Code
8538908180
MSDS Flag
No
UL File Number
E12379
Series
HKH Series
BOX SIZE
0.000x0.000x0.000 (in)
Carton - Number of Sub Packs
20
Carton - SCC-14 Next Lower Level Sub Pack
00783936122113
Hazardous Rating(s)Class I, Division 2, Groups A, B, C, D;Class II, Division 1, Groups E, F, G (Canada Only);Class II, Division 2, Groups E, F, G;Class III, Divisions 1 & 2;Zones 1 & 2;Zones 21 & 22
Voltage Rating120-277 VAC
Nema Rating3, 4, 4X, 12, 13
Class CodeD25
Freight Class Code06316009
Image Actual Or RepresentativeR
Sub Class CodeD25D250
MaterialPlastic
Base Unit of MeasureEA
Carton - Gross Weight per Pack0.100 lb.
Carton - Pack DescriptionCarton
Carton - Total Units20

Certifications

EU RoHS Indicator
Contact Manufacturer
