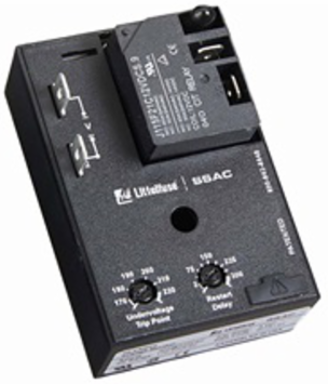

Littelfuse HLVA6I23 HLVA6I23 - HLV Series
- MPN: HLVA6I23
- UPC: 079458993721
- PPN: LTF-HLVA6I23
CAD
$216.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Operation Upon application of input voltage the output relay remains de-energized. When the input voltage value is above the pull-in voltage, the restart delay begins. At the end of the restart delay, the output relay energizes. When the input voltage falls below the trip point, the trip delay begins. If the input voltage remains below the pull-in voltage for the entire trip delay the relay deenergizes. If the input voltage returns to a value above the pull-in voltage, during the trip delay, the trip delay is reset and the relay remains energized. If the input voltage falls below the trip point voltage during the restart delay, the delay is reset and the relay remains de-energized. Reset is automatic upon correction of an undervoltage fault. Reset: Removing input voltage resets the output relay and the time delays.
Documentation & Downloads
Specifications
Key Specifications
| Input Voltage (V) | Min RMS Voltage: 70VAC; Max RMS Voltage: 264VAC |
|---|---|
| Output Type | Electromechanical relay |
| Output Load Rating (VA) | General Purpose: SPDT-NO: 125/240VAC ≅ 30A; SPDT-NC≅15A; Resistive: SPDT-NO≅30A for 125/240VAC 20A for 28VDC; SPDT-NC≅15A for 125/240VAC 10A for 28VDC; Motor Load: SPDT-NO≅1 hp for 125VAC 2hp for 240VAC; SPDT-NC≅1/4hp for 125VAC 1hp for 240VAC |
| Reset Time (ms) | ≤150ms |
| Repeat Accuracy (%) | ±0.5% or 20ms whichever is greater |
| Trip Point Accuracy (%) | ±3% of trip point |
| Setpoint vs Ambient Temperature and Operating Voltage (%) | ≤±10% |
| Pull-in Voltage (V) | 105% or trip point voltage |
| Isolation Voltage (V) | ≥1500V RMS input to output |
| Circuitry | Encapsulated |
| Termination Type | 0.25 in. (6.35mm) male quick connect terminals |
| Operating Temperature | -40° to 60°C (-40°F to 140°F) |
| Humidity | 95% relative non-condensing |
| Weight (lbs/g) | ≅3.9oz (111g) |
| Input AC Line Frequency (Hz) | 50/60Hz |
|---|---|
| Output Form | Isolated SPDT |
| Time Delay Tolerance (%) | ≤±5% |
| Restart Delay Range | 3-300s adjustable |
| Trip Delay Range | 3s |
| Undervoltage Sensing Range (V) | Peak voltage sensing; 170 to 220VAC |
| Power Consumption | ≤4VA |
| Insulation Resistance | ≥100 MΩ |
| Surge Protection | IEEE C62.41-1991 Level A |
| Life | Mechanical - 1 x 106; Electrical - 1 x 105 3 x 104 for 1hp 6 000 for 1/4hp 1hp and 2hp |
| Mounting Method | Surface mount with one #10 (M5 x 0.8) screw |
| Storage Temperature (F/C) | -40° to 85°C (-40°F to 185°F) |
| Dimensions | 3.00 x 2.00 x 1.50 in. (76.7 x 50.8 x 38.1mm) |
