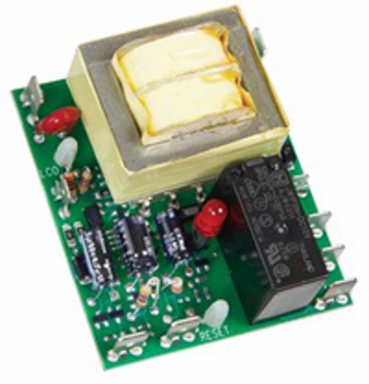

Littelfuse LLC825F5M LLC825F5M - LLC8 Series

Name: Littelfuse LLC825F5M LLC825F5M - LLC8 Series
Brand: Littelfuse
SKU: LTF-LLC825F5M
Price: 153.16 CAD
Availability: BackOrder

CAD

$153.16

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

See datasheet for operation and reset details.

Input Voltage (V)	24VAC
Input AC Line Frequency (Hz)	50/60Hz
Output Form	Isolated SPDT
Time Delay Range	5s fixed
Reset Time (ms)	Manual / automatic reset
Setpoint vs Ambient Temperature and Operating Voltage (%)	±10%
Sense Resistance (Ohms)	5 kΩ
Control Type	Resistance sensing for conductive liquids with time delay
Surge Protection	IEEE C62.41-1991 Level A
Termination Type	Electrical: 0.25 in. (6.35mm) male quick connect terminals; Reset switch and probes: 0.187 x 0.03 in (4.75 x 0.76 mm) male quick connect terminals
Operating Temperature	-40° to 60°C (-40°F to 140°F)
Humidity	95% relative non-condensing

Input Tolerance (%)	-0.35
Output Type	Electromechanical relay
Output Load Rating (VA)	10A resistive @ 240VAC; 1/4hp @ 125VAC; 1/2hp @ 250VAC
Time Delay Tolerance (%)	±20%
Repeat Accuracy (%)	±10%
Sense Voltage	12VAC at probe terminals
Sense Resistance Tolerance	±10%
Isolation Voltage (V)	≥2500V RMS between input and output terminals
Circuitry	Printed circuit board is conformal coated to resist moisture and corrosion
Mounting Method	0.50 in. (12.7mm) nylon standoffs with three #6 (M3.5 x 0.6) screws
Storage Temperature (F/C)	-40° to 80°C (-40°F to 176°F)
Weight (lbs/g)	≅5.0oz (141.7g)
