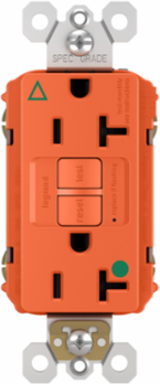

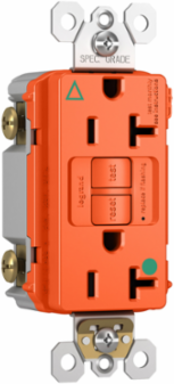

Pass & Seymour 2097IGHGTRO Hospital Grade Isolated Ground Tamper-Resistant 20A Duplex Self-Test GFCI Receptacles with SafeLock® Protection, Orange
Pass & Seymour 2097IGHGTRO Hospital Grade Isolated Ground Tamper-Resistant 20A Duplex Self-Test GFCI Receptacles with SafeLock® Protection, Orange
- MPN: 2097IGHGTRO
- UPC: 785007048728
- PPN: P-S-2097IGHGTRO
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$84.26/ EA
Description
Hospital Grade Isolated Ground Tamper-Resistant 20A Duplex Self-Test GFCI Receptacles with SafeLock® Protection, Orange
Features
- Hospital Grade GFCI self-test
Specifications
Specifications
- Depth
- 1.03 in
- Height
- 4.2 in
- Standard
- cULus
- Country of Origin
- China
- Outlet Type
- GFCI
- Standard
- UL Listed
- Indoor/Outdoor
- Indoor
- Wall Plate Included
- Yes
- Number of Receptacles
- 2.0
- Number of Poles
- Double Pole
- Application Sector
- Commercial
- Application Sector
- Residential
- Wire Connection Type
- Screw Terminals
- Application Sector
- Multi-Dwelling Unit
- Environmental Conditions
- 95% Humidity, UL 94 V2
- Color
- Orange
StandardFSUL
Width1.73 in
Amperage20.0 A
Voltage125.0 V
FeaturesSelf-Test
Number of Wires3.0
Is Tamper-ResistantYes
FeaturesIsolated Ground
Outlet TypeHospital Grade
Outlet TypeTamper-Resistant
NEMA Configuration Code5-20R
Connection LocationBack and Side
Warranty Type1-Year Limited Warranty
Wire Connection TypeInternal Pressure Plates
Special FeaturesPass & Seymour invented the GFCI receptacle, and at Legrand, we're constantly reinventing it to ensure the highest level of safety possible. From the most advanced self-testing device to audible alarms to nightlight combos, we're continuously resetting the bar on GFCI innovation and safety.
Product LinePass & Seymour
