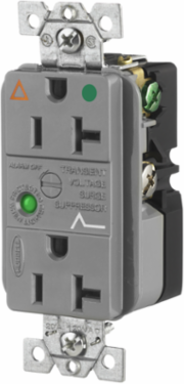

Hubbell Wiring Device-Kellems IG8362GYSA Hospital Grade Surge Suppression Receptacle 20A 125V 5-20R Gray
- MPN: IG8362GYSA
- UPC: 783585960470
- PPN: HBL-IG8362GYSA
- UNSPSC: 39121610
CAD
$232.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Hospital Grade Surge Suppression Receptacle, 20A 125V, 5-20R, Gray
Features
- High-impact nylon face resists breakage
- Automatic grounding clip attached to bridge
- Power-on indicator light verifies instantly that power is available
- Distinctive surge symbol provides quick visual identification of surge suppression receptacle
- Isolated Ground
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Current / Amperage Rating
- 20 A
- Industry Standard(s)
- CSA Certified to Specification C22.2 No. 42;Listed to UL Standards 498 Receptacles;UL Listed File E2186
- Amperage Rating
- 20 A
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Operating Temperature
- 32 Deg F to 140 Deg F (0 Deg C to 60 Deg C)
- Phase
- Single Phase
- Special Features
- Isolated Ground
- Type
- Duplex
- Voltage Rating Description
- 125 V
- General Literature Asset 1 Display Text
- Duct Products Guide
- Connectivity
- Terminal Screws
- Nema Rating
- 5-20R
- Class Code
- A44
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- IG8300GYS;IG8362GYS
- Material - Mounting Hardware
- Mounting Screws
- Indicator(s) Type
- LED and Audible Alarm
- Series
- Hospital Grade
- BOX SIZE
- 4.300x11.000x4.600 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585960470
- Case - Total Units
- 50 EA
- Each - Pack Description
- Each
- NAICS Code
- 335999E509
ColorGray
Width2.200 in
PerformanceElectrical - Frequency - 60Hz;Electrical - Protection Modes - Normal and Common Modes;Electrical - Response Time - Approximately 5 ns;Electrical - Transient Suppression - Peak Energy (10 X 100 µs) Peak Current (8 X 20 µs);Electrical - Voltage - 120V AC + 10% - 15%;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - 32°F to 140°F (0°C to 60°C)
ApplicationDecorator Duplex with Light and Alarm
Frequency Rating60 Hz
OutletStraight Blade
Response Time5
StandardCSA Certified to Specification C22.2 No. 42;Listed to UL Standards 498 Receptacles;UL Listed File E2186
Voltage Rating125 V
Engineering Drawing 1 Display TextIG8362GYSA AutoCAD Drawing
General Literature Asset 2 Display TextSpikeShield® Surge Protective Devices
Display SizeStandard
StyleIsolated Ground
Description - InvoiceDUP SPD RCPT, IG, HG,20A 125V, 5-20R,GY
Harmonization Code8537109170
MSDS FlagNo
Sub Class CodeA44A420
Current Rating20 A
MaterialComposite
Base Unit of MeasureEA
Carton - Gross Weight per Pack3.1 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight16.050 lb.
Lowest Level UOMEach
