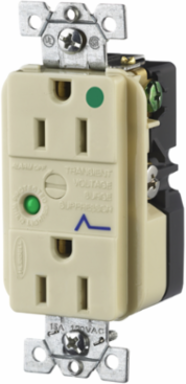

Hubbell Wiring Device-Kellems HBL8262ISA SPIKESHIELD Hospital Grade Duplex Surge Suppression Receptacle 15A 125V 5-15R
Hubbell Wiring Device-Kellems HBL8262ISA SPIKESHIELD Hospital Grade Duplex Surge Suppression Receptacle 15A 125V 5-15R
- MPN: HBL8262ISA
- UPC: 783585060378
- PPN: HBL-HBL8262ISA
- UNSPSC: 39121610
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$244.83/ EA
Description
Surge Protective Devices, SPIKESHIELD Hospital Grade Surge Suppression Receptacle, Duplex, 15A 125V, 5-15R, Ivory
Features
- High-impact nylon face resists breakage
- Automatic grounding clip attached to bridge
- Power-on indicator light verifies instantly that power is available
- Distinctive surge symbol for visual identification of surge suppression receptacle
- Standard Product
Specifications
Specifications
- Country of Origin
- China
- Current / Amperage Rating
- 15 A
- Industry Standard(s)
- CSA Certified to Specification C22.2 No. 42;Listed to UL Standards 498 Receptacles;UL Listed File E2186
- Amperage Rating
- 15 A
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Operating Temperature
- 32 Deg F to 140 Deg F (0 Deg C to 60 Deg C)
- Phase
- Single Phase
- Special Features
- Standard Product
- Type
- Duplex
- Voltage Rating Description
- 125 V
- General Literature Asset 1 Display Text
- Duct Products Guide
- Connectivity
- Terminal Screws
- Nema Rating
- 5-15R
- Description - Invoice
- DUP SPD RCPT, HG, 15A 125V, 5-15R, IV
- Harmonization Code
- 8536308000
- MSDS Flag
- No
- Sub Class Code
- A44A420
- Current Rating
- 15 A
- Material
- Composite
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 3.05 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 15.000 lb.
- Lowest Level UOM
- Each
ColorIvory
Width2.200 in
PerformanceElectrical - Frequency - 60Hz;Electrical - Protection Modes - Normal and Common Modes;Electrical - Response Time - Approximately 5 ns;Electrical - Transient Suppression - Peak Energy (10 X 100 µs) Peak Current (8 X 20 µs);Electrical - Voltage - 120V AC + 10% - 15%;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - 32°F to 140°F (0°C to 60°C)
ApplicationDecorator Duplex with Light and Alarm
Frequency Rating60 Hz
OutletStraight Blade
Response Time5
StandardCSA Certified to Specification C22.2 No. 42;Listed to UL Standards 498 Receptacles;UL Listed File E2186
Voltage Rating125 V
Engineering Drawing 1 Display TextHBL8262ISA AutoCAD Drawing
General Literature Asset 2 Display TextSpikeShield® Surge Protective Devices
Display SizeStandard
Class CodeA44
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number8200HIS;8262IS;HBL8262IS
Material - Mounting HardwareMounting Screws
Indicator(s) TypeLED and Audible Alarm
SeriesHospital Grade
BOX SIZE4.100x11.200x4.400 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585060378
Case - Total Units50 EA
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- No
Downloads
