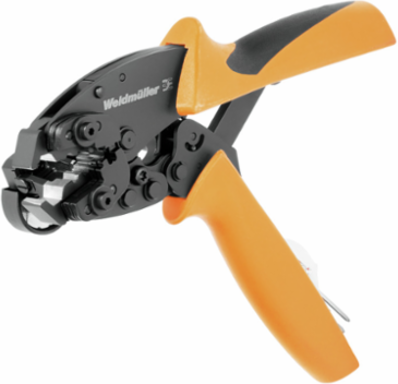

Weidmuller 1208870000 HTX-IE-POF
- MPN: 1208870000
- PPN: WDM-1208870000
CAD
$2287.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Pressing tool
Documentation & Downloads
Specifications
Approvals
| Approvals | EAC |
|---|
Dimensions And Weights
| Width | 220 mm |
|---|---|
| Weight | 450 g |
| Width (inches) | 8.661 inch |
|---|---|
| Net weight | 645 g |
Classifications
| ETIM 6.0 | EC000168 |
|---|---|
| eClass 9.0 | 21-04-38-11 |
| eClass 10.0 | 21-04-38-11 |
| ETIM 7.0 | EC000168 |
|---|---|
| eClass 9.1 | 21-04-38-11 |
| UNSPSC | 23-17-16-04 |
Product Information

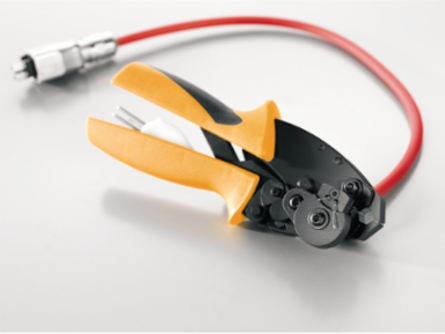

| Product information | HTX_IE_POF Only one tool for the entire processing procedure of the SC-RJ plugs For processing 1 mm thick polymer optical fibres, especially for PROFINET and ETHERNET/IP SC-RJ connectors For stripping Duplex polymer optical fibres The plugs are crimped and the polymer optical fibres are cut in a single step The cut faces do not need additional polishing Locator for precise positioning of the SC-RJ plugs Ergonomically shaped handles High repeatability Tested to more than 15,000 operations Just three steps to finish the IP67 connector: 1) Strip the polymer optical fibre cable 2) Crimping and cutting 3) Crimp the strain relief |
|---|
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Description Of Contact
| Type of contact | For 1 mm thick polymer optical fibres |
|---|
