Jonard Tools JIC-375 Jonard Tools JIC-375 Fiber Optic Stripper Three Hole
- MPN: JIC-375
- UPC: 811490010949
- PPN: JTL-JIC-375
CAD
$50.76
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

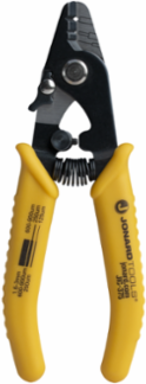

The Jonard Tools JIC-375 Three Hole Fiber Optic Stripper performs all common fiber stripping functions. This fiber optic stripper features the following: Safety lock allows the tool to be easily stored when not in use Tool is made of strong high carbon steel and handle is made of TPR (thermoplastic rubber) for high durability and greater comfort
Features

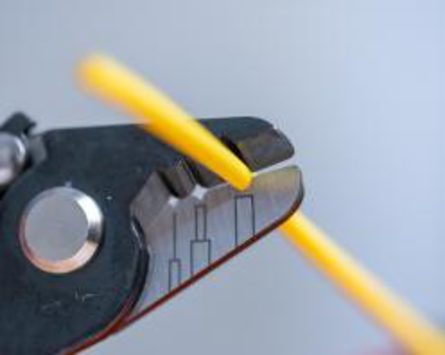

- Strips the 1.6 mm-3.0 mm fiber cable jacket, 600-900 micron buffer coating, and 250 micron acrylate coating to expose the 125 micron glass fiber
- First hole strips the 1.6 mm-3.0 mm jacket exposing the optical fiber and Kevlar strength members
- Second hole strips the buffer coating, exposing the acrylate coating on the optical fiber
- Third hole strips the acrylate coating exposing the glass fiber without nicking or scratching the fiber
- Angled jaw guides fiber into the 3rd hole to prevent accidental cutting of the fiber
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Taiwan, Province of China |
|---|---|
| Cut Type | Strip |
| Cable Type | Jacket, Buffer, Fiber Optic |
| Strip Diameter | 250 micron, 600-900 micron, 1.6 mm-3.0 mm |
| Weight | 0.33 Lbs. |
| Product Main Color | Yellow |
| Length | 0.5 Inch |
|---|---|
| Width | 3.5 Inch |
| Height | 9.75 Inch |
| Handle Grip Material | TPR (Thermoplastic Rubber) |
| Handle Color | Yellow |
| Handle Material | TPR (Thermoplastic Rubber) |
