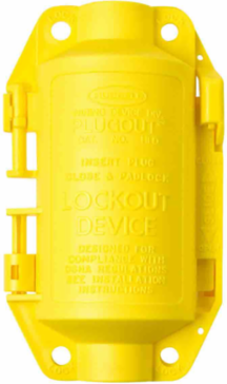

Brady 65695 Hubbell Plugout® Electrical Lockout Device
- MPN: 65695
- UPC: 754473656959
- PPN: BRD-65695
- UNSPSC: 39121906
CAD
$48.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

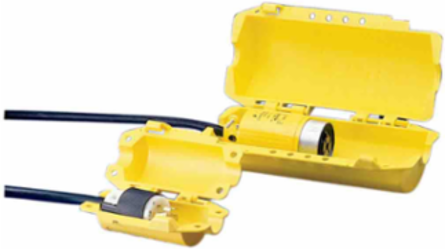

The Hubbell Plugout® prevents electrical plugs from being inserted into a wall outlet.
Features
- Hubbell Plugout® should be used when the plug will not remain under the exclusive control of the person performing service or maintenance
- Fits the majority of heavier industrial plug applications
- Equipping your employees with the proper lockout tools and warning devices can save lives, reduce lost employee time, and cut insurance costs
- Brady® is a world leader in lockout/tagout products and services offering industry expertise and a broad range of durable, easy-to-use lockout devices
Documentation & Downloads
Specifications
Key Specifications
- Brand Name
- Brady®
- Enables Industry Compliance
- OSHA 1910.147
- Plug Lockout Type
- Plug-Encasing
- Risk Type
- Electrical Risk
- Trade Name
- Hubbell Plugout®
- Brady Material Number
- LOTO-62
- Material
- Polypropylene
- Depth (mm/cm/m)
- 78.99 mm
- Dimensions
- 3.11 in H x 4.25 in W x 7.31 in L
- Height (in/ft/yd)
- 3.11 in
- Length (in/ft/yd)
- 7.31 in
- Maximum Cord Diameter (in/ft/yd)
- 1.2 in
- Maximum Plug Diameter (in/ft/yd)
- 2.75 in
- Maximum Plug Length (in/ft/yd)
- 4.75 in
- Maximum Plug Size (in/ft/yd)
- 4.75 in L x 2.75 in Dia
- Maximum Shackle Diameter (in/ft/yd)
- 0.37 in
- Maximum Wire Diameter (mm/cm/m)
- 25.00 mm
- Minimum Shackle Clearance - (mm/cm/m)
- 20.00 mm
- Sign Size-General
- 3.11 in x 4.25 in
- Size - W x H x D (mm)
- 106.00 x 80.00 x 78.99
- Width (in/ft/yd)
- 4.25 in
ColorYellow
Maximum Number of Padlocks4
Primary Noun, Basic FunctionLockout Device
Total Qty per Pack1 Piece(s) / Pack
Adhesive (Y/N)No
Lockout MaterialPolypropylene
SAP B-NumberLOTO-62
Diameter (mm/cm/m)78.99 mm
Dimensions (Metric)106.00 mm W x 80.00 mm H x 78.99 mm Dia x 185.00 mm L x 78.99 mm D
Height (mm/cm/m)80.00 mm
Length (mm/cm/m)185.7 mm
Maximum Cord Diameter (mm/cm/m)30.48 mm
Maximum Plug Diameter (mm/cm/m)69.85 mm
Maximum Plug Length (mm/cm/m)120.65 mm
Maximum Service Temperature °C80 °C
Maximum Shackle Diameter (mm/cm/m)9.40 mm
Minimum Service Temperature °C-20 °C
Minimum Wire Diameter (mm/cm/m)25.00 mm
Size - Length (mm)185.00 mm
Size - Width (mm)106.00 mm
Width (mm/cm/m)107.95 mm
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- Contains 3TG Mineral
- Not Applicable
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
SDS Safety Data Sheet requiredNo = MSDS/SDS is not required
