Brady 65968 Hubbell Plugout® Electrical Lockout Device
- MPN: 65968
- UPC: 754473659684
- PPN: BRD-65968
- UNSPSC: 39121906
CAD
$60.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

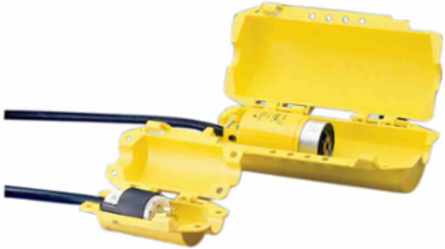

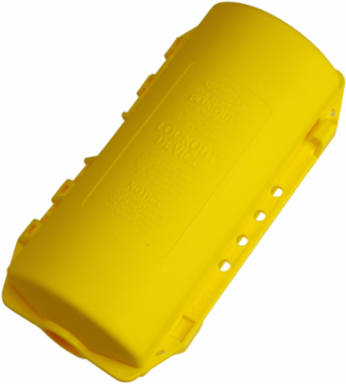

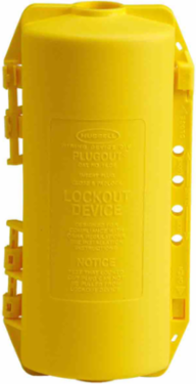

The Hubbell Plugout® prevents electrical plugs from being inserted into a wall outlet.
Features
- Hubbell Plugout® should be used when the plug will not remain under the exclusive control of the person performing service or maintenance
- Fits the majority of heavier industrial plug applications
- Equipping your employees with the proper lockout tools and warning devices can save lives, reduce lost employee time, and cut insurance costs
- Brady® is a world leader in lockout/tagout products and services offering industry expertise and a broad range of durable, easy-to-use lockout devices
Documentation & Downloads
Specifications
Key Specifications
- Brand Name
- Brady®
- Enables Industry Compliance
- OSHA 1910.147
- Plug Lockout Type
- Plug-Encasing
- Risk Type
- Electrical Risk
- Trade Name
- Hubbell Plugout®
- Brady Material Number
- LOTO-62
- Material
- Polypropylene
- Depth (mm/cm/m)
- 128.52 mm
- Dimensions
- 5.06 in H x 6.31 in W x 12.47 in L
- Height (in/ft/yd)
- 5.06 in
- Length (in/ft/yd)
- 12.47 in
- Maximum Cord Diameter (in/ft/yd)
- 1.46 in
- Maximum Plug Diameter (in/ft/yd)
- 4.5 in
- Maximum Plug Length (in/ft/yd)
- 10.3 in
- Maximum Plug Size (in/ft/yd)
- 10.3 in L x 4.5 in Dia
- Maximum Shackle Diameter (in/ft/yd)
- 0.39 in
- Maximum Wire Diameter (mm/cm/m)
- 35.00 mm
- Minimum Shackle Clearance - (mm/cm/m)
- 20.00 mm
- Sign Size-General
- 5.06 in x 6.31 in
- Size - W x H x D (mm)
- 120.00 x 120.00 x 128.52
- Width (in/ft/yd)
- 6.31 in
ColorYellow
Maximum Number of Padlocks4
Primary Noun, Basic FunctionLockout Device
Total Qty per Pack1 Piece(s) / Pack
Adhesive (Y/N)No
Lockout MaterialPolypropylene
SAP B-NumberLOTO-62
Diameter (mm/cm/m)128.52 mm
Dimensions (Metric)120.00 mm W x 120.00 mm H x 128.52 mm Dia x 300.00 mm L x 128.52 mm D
Height (mm/cm/m)120.00 mm
Length (mm/cm/m)31.67 cm
Maximum Cord Diameter (mm/cm/m)37.08 mm
Maximum Plug Diameter (mm/cm/m)114.30 mm
Maximum Plug Length (mm/cm/m)261.62 mm
Maximum Service Temperature °C80 °C
Maximum Shackle Diameter (mm/cm/m)9.91 mm
Minimum Service Temperature °C-20 °C
Minimum Wire Diameter (mm/cm/m)35.00 mm
Size - Length (mm)300.00 mm
Size - Width (mm)120.00 mm
Width (mm/cm/m)160.27 mm
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- Contains 3TG Mineral
- Not Applicable
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
SDS Safety Data Sheet requiredNo = MSDS/SDS is not required
