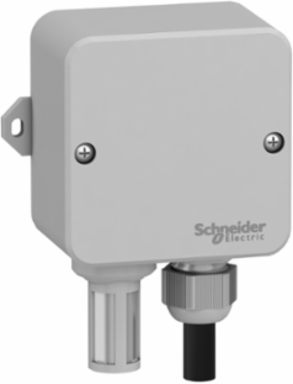

Schneider Electric TM1SHTCC4 Humidity and Temperature Sensor, 4-20 mA Output, IP65, 0-100% RH
- MPN: TM1SHTCC4
- PPN: SCH-TM1SHTCC4
CAD
$582.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This humidity and temperature sensor from Schneider Electric is designed to deliver accurate environmental monitoring with its 4-20 mA output, ensuring reliable performance in various applications. Built to withstand challenging conditions, it features an IP65 rating, making it suitable for use in environments where moisture and dust may be present. Capable of measuring humidity levels ranging from 0 to 100% RH, this sensor provides essential data for maintaining optimal climate control and process efficiency in industrial settings. The integration of advanced technology ensures that users can depend on its precise readings for effective environmental management.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, Italy, United States
Depth50.5 mm
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, SI
- Certificate Agency
- CE, cULus, EAC, UKCA
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.2 kg CO2 eq., 0.1980328327
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 21 kg CO2 eq., 21.0237650143
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1929
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Industrial
- Average Consumption In Ma
- 50 mA
- Fixing Mode
- 2 fixing points
- Overvoltage Category
- I
- Product Specific Application
- humidity control
- Returnability
- Yes
- Sustainable Packaging
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2016-11
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Installation [A5]
- Electricity mix; AC; < 1kV; EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; < 1kV; EU-27
- Width Nominal
- 100 mm
- Accessory / Separate Part Category
- measurement accessory
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 9025801000
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator
Carbon Footprint Of The Distribution Phase [A4]0.0322557425, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0002498174, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
Local Publishable Date2026-03-26
Stocking FlagN
Service Catalog ItemFinished good
Weee Product Category5
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Electrical Connectionscrew-clamp terminals
Mounting Supportmounting box
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductModicon M171/M172
Software VersionEIME v5.6.0.1
Total Lifecycle Carbon Footprint21 kg CO2 eq.
Pep CodeENVPEP1709014EN
Pep Verification Date2017-10-01
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionFor managing a wide range of HVAC/R, pumping and many other applications and a 100% of the time for 10 years
Functional-unit Unitunité (unit)
Energy Model - Manufacturing [A1-a3]Energy model used: Italy
Energy Model - Use [B6]Electricity mix; AC; < 1kV; EU-27
Height Nominal122 mm
[Us] Rated Supply Voltage9...28 V AC9...40 V DC
Accessory / Separate Part Typeprobe
Package Weight(Lbs)250.0 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-60 °C, -40-60 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 21.2543034068
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP1709014EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1709014EN
Ip Degree Of ProtectionIP65
Packaging Without Single Use PlasticNo
Relative Humidity0-100 %
Pep Verification Date2017-10-01
Type Of Verification For The PepIndependent internal review
General Attributes
- Range Of Product
- Modicon M171/M172
ETIM
- ETIM 8
- EC004240
ETIM 9EC004240
Output Attributes
- Output Type
- current 4...20 mA +/- 3 % RHcurrent 4...20 mA -40-60 °C +/- 1 °C
