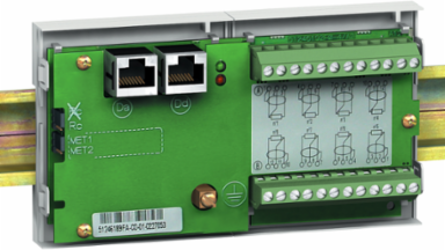

Schneider Electric 59641 8 temperature sensor module MET148-2 for Sepam series 20, 40, 60, 80
Schneider Electric 59641 8 temperature sensor module MET148-2 for Sepam series 20, 40, 60, 80
- MPN: 59641
- PPN: SCH-59641
- UNSPSC: 39122221
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$517.95/ EA
Description
External 8 temperature sensors module MET148-2 for Schneider Electric's protection relays. This module can be used to ensure direct temperature measurements with Resistance Temperature Detectors (RTDs). It can be connected to the protection relay any time: during installation, commissioning or even during maintenance. This module provides 8 Resistance Temperature Detector (RTD) inputs. This external module can work with Pt100, Ni100 and Ni120 types of Resistance Temperature Detectors. Connection is made thru screw-type terminals. This module does not require auxiliary power supply. It is powered by Easergy P5. The product dimensions are 88 mm in height (3.46 in), 144 mm in width (5.70 in) and 30 mm in depth 1.18 in) for a net weight of 200 g (0.440 lbs). Easergy P5 is compliant with EN 60255-26, EN 60255-27 standards and with UL Standard. It provides Marine certification. This product can be installed on symmetrical DIN rail. Connection cords (59660, 59661, 59662).
Features
- Allows to connect 8 RTDs to PowerLogic P5
- Up to 2 modules can be connected to PowerLogic P5
- Doesn't need auxiliary power supply
- Available from centralized stock
Specifications
Complementary Attributes
- Maximum Distance Between Sensor And Module
- 1 km
Important Information Attributes
- Electromagnetic Compatibility
- disturbing field emission emission tests) A EN 55022, 1 MHz damped oscillating wave 2.5 kV CM, 1 kV DM immunity tests-conducted disturbances) IEC 60255-22-1, fast transient bursts 4kV, 2.5 kHz immunity tests-conducted disturbances) ANSI C37.90.1, fast transient bursts 4kV, 2.5 kHz/2 kV, 5 kHz immunity tests-conducted disturbances) A and B IEC 60255-22-4, fast transient bursts 4kV, 2.5 kHz immunity tests-conducted disturbances) IV IEC 61000-4-4, immunity to conducted RF disturbances 10 V immunity tests-conducted disturbances) III IEC 60255-22-6, immunity to magnetic fields at network frequency 30 A/m (continuous)-300 A/m (1-3 s) immunity tests-radiated disturbances) IV IEC 61000-4-8, immunity to radiated fields 10 V/m, 80 MHz...1 GHz immunity tests-radiated disturbances) IEC 60255-22-3, immunity to radiated fields 35 V/m, 25 MHz...1 GHz immunity tests-radiated disturbances) ANSI C37.90.2, immunity to radiated fields 10 V/m, 80 MHz...2 GHz immunity tests-radiated disturbances) III IEC 61000-4-3, surges 2 kV CM, 1 kV DM immunity tests-conducted disturbances) III IEC 61000-4-5, voltage interruptions 100 % during 100 ms immunity tests-conducted disturbances) IEC 60255-11, 1 MHz damped oscillating wave 2.5 kV CM, 2.5 kV DM immunity tests-conducted disturbances) ANSI C37.90.1, 100 kHz damped oscillating wave 2.5 kV CM, 1 kV DM immunity tests-conducted disturbances) IEC 61000-4-12, conducted disturbance emission emission tests) IEC 60255-25, conducted disturbance emission emission tests) A EN 55022, disturbing field emission emission tests) IEC 60255-25, electrostatic discharge 8 kV air, 4 kV contact immunity tests-radiated disturbances) ANSI C37.90.3, electrostatic discharge 8 kV air, 6 kV contact immunity tests-radiated disturbances) IEC 60255-22-2
- Range Of Product
- Sepam series 80, Sepam series 60, Sepam series 80 NPP, Sepam series 40, Sepam series 20
- Temperature Probe Type
- Ni 100/Ni 120, <4 mA isolation from earth: none, Pt 100, <4 mA isolation from earth: none
- Local Publishable Date
- 2026-01-23
- Serviceability
- No
- Legacy WEEE Scope
- Out
- EOLI Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Device Short Name
- MET148-2
- Module Type
- temperature sensor
- Mounting Support
- symmetrical DIN rail
- Product Availability
- Stock - Normally stocked in distribution facility
- Sustainable Packaging
- No
- Type Of Measurement
- Temperature
- Stocking Flag
- Y
- Pep Code
- ENVPEP1411007_V1
Mechanical Robustnessearthquakes in operation 2) 1 Gn (vertical axes) IEC 60255-21-3, earthquakes in operation 2) 2 Gn (horizontal axes) IEC 60255-21-3, jolts de-energized 2) 20 Gn/16 ms IEC 60255-21-2, shocks de-energized 2) 27 Gn/11 ms IEC 60255-21-2, shocks in operation 2) 10 Gn/11 ms IEC 60255-21-2, vibrations de-energized 2) 2 Gn, 10 Hz...150 Hz IEC 60255-21-1, vibrations in operation 2) 1 Gn, 10 Hz...150 Hz IEC 60255-21-1, vibrations in operation Fc) 2 Hz...13.2 Hz, a = +/- 1 mm IEC 60068-2-6
Auxiliary Connection Terminalearthing terminal screw-type connectors cable <1000 m, earthing terminal screw-type connectors tinned copper braid 6-100 mm² <1000 m, RTDs screw-type connectors 1 wire 0.2-2.5 mm², RTDs screw-type connectors 2 wire 0.2-1 mm²
Local Data StatusPublishable
Device TypeRelay, Control & Measurement - Protection relay
TraceabilityNo
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1411007_V1
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeYes
Without Single Use PlasticNo
Return IndicatorN
Energy Efficiency OptimizedFalse
Mounting Modefixed
Package Weight Lbs232.600 g
ReturnabilityNo
Tightening Torqueearthing terminal: 2.2-2.2 N.m
Medium Desc8 temperature sensor module MET148-2 for Sepam series 20, 40, 60, 80
Product Kit IdentifierN
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1411007_V1
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Climatic Withstandinfluence of corrosion/gaz test 2 in operation) 21 days, 75 % RH, 25 °C, 0.5 ppm H2S, 1 ppm S02 IEC 60068-2-60, salt mist in operation) Kb/2 6 days IEC 60068-2-52, temperature variation with specified variation rate in storage) Nb - 25 °C to 70 °C, 5 °C/min IEC 60068-2-14, influence of corrosion/gaz test 4 in operation) 21 days, 75 % RH, 25 °C, 0.01 ppm H2S, 0.2 ppm S02, 0.2 ppm NO2, 0.01 ppm CI2 IEC 60068-2-60, continuous exposure to damp heat in operation) Cab 10 days, 93 % RH, 40 °C IEC 60068-2-78, continuous exposure to damp heat in storage) Cab 56 days, 93 % RH, 40 °C IEC 60068-2-78, continuous exposure to damp heat in storage) Db 6 days, 95 % RH, 55 °C IEC 60068-2-30, exposure to cold in operation) Ad - 25 °C IEC 60068-2-1, exposure to cold in storage) Ab - 25 °C IEC 60068-2-1, exposure to dry heat in operation) Bd 70 °C IEC 60068-2-2, exposure to dry heat in storage) Bb 70 °C IEC 60068-2-2
ROHS Exemption InformationYes
China ROHS RegulationX
Ambient Air Temperature For Operation-25-70 °C
Environmental DisclosureENVPEP1411007_V1
Packaging Without Single Use PlasticNo
Pep CodeENVPEP1411007_V1
General Attributes
- Range Of Product
- Sepam series 80, Sepam series 60, Sepam series 80 NPP, Sepam series 40, Sepam series 20
Input Attributes
- Number Of Inputs
- 8
Specifications
- Country of Origin
- Romania
Depth30 mm
