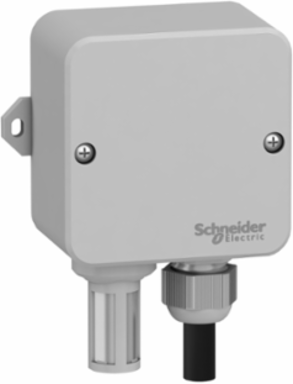

Schneider Electric TM1SHTCN4 Humidity Sensor 4-20 mA NTC, IP65, -40-60 C, 0.14 kg
- MPN: TM1SHTCN4
- PPN: SCH-TM1SHTCN4
CAD
$407.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Schneider Electric TM1SHTCN4 Humidity Sensor is engineered to provide reliable humidity measurements in diverse environments, underlining its robustness with a rating of IP65. Designed to operate effectively in temperatures ranging from -40 C to 60 C, this sensor is perfect for industrial applications where durability and accuracy are paramount. With a 4-20 mA output and a Negative Temperature Coefficient (NTC) characteristic, it ensures precise readings vital for air quality control and energy management systems. Its dependable performance makes it a critical component for optimizing environmental conditions in a variety of settings.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, United States
Depth50.5 mm
Important Information Attributes
- Certificate Agency
- CE, cULus, EAC, UKCA
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.2 kg CO2 eq., 0.1774374181
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 19 kg CO2 eq., 18.8372934528
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Weee Product Category
- 5
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Product Kit Identifier
- N
- Electrical Connection
- screw-clamp terminals
- Mounting Support
- mounting box
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- Modicon M171/M172
- Software Version
- EIME v5.6.0.1
- Total Lifecycle Carbon Footprint
- 19 kg CO2 eq.
- Pep Code
- ENVPEP1709014_V1
- Pep Verification Date
- 2017-10-01
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- For managing a wide range of HVAC/R, pumping and many other applications and a 100% of the time for 10 years
- Functional-unit Unit
- unité (unit)
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Italy
- Energy Model - Use [B6]
- Electricity mix; AC; < 1kV; EU-27
- Height Nominal
- 122 mm
- [Us] Rated Supply Voltage
- 9...28 V DC
- Accessory / Separate Part Type
- probe
- Package Weight(Lbs)
- 238.000 g
- Warranty (In Months)
- 18
Carbon Footprint Of The Distribution Phase [A4]0.0289011453, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0002238364, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
Local Publishable Date2026-01-12
Stocking FlagY
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1929
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Average Consumption In Ma20 mA
Fixing Mode2 fixing points
Overvoltage CategoryI
Product Specific Applicationhumidity control
ReturnabilityNo
Sustainable PackagingNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]Electricity mix; AC; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]Electricity mix; AC; < 1kV; EU-27
Width Nominal100 mm
Accessory / Separate Part Categorymeasurement accessory
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code9025801000
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-60 °C, -40-60 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 19.0438558525
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP1709014_V1
- Pcr Version
- PCR-ed3-EN-2015 04 02
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1709014_V1
Ip Degree Of ProtectionIP65
Packaging Without Single Use PlasticNo
Relative Humidity0-100 %
Pep Verification Date2017-10-01
Type Of Verification For The PepIndependent internal review
General Attributes
- Range Of Product
- Modicon M171/M172
Output Attributes
- Output Type
- current 4...20 mA +/- 3 % RH, NTC 10 kOhm/25 °C -40-60 °C +/- 1 °C
