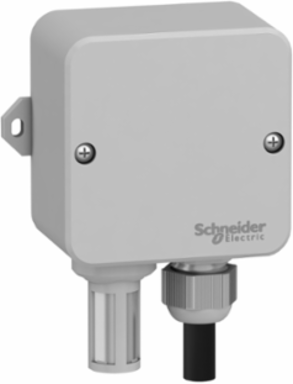

Schneider Electric TM1SHC4 Humidity Sensor 4-20 mA, 0-100% RH, IP65, Wall Mounted
- MPN: TM1SHC4
- PPN: SCH-TM1SHC4
- UNSPSC: 32151703
CAD
$194.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Designed to provide precise humidity measurements, the Schneider Electric TM1SHC4 Humidity Sensor is an essential tool for monitoring environmental conditions in various settings. With a measurement range of 0-100% relative humidity and a reliable output of 4-20 mA, it ensures accurate data transmission for effective climate control. Additionally, its wall-mounted design coupled with an IP65 rating makes it resistant to dust and water, allowing for dependable operation in challenging environments. This sensor is ideal for applications that demand consistent performance and durability in humidity monitoring.
Features
- Modicon M171/M172/M173 logic controllers help to maximize profitability/energy efficiency
- Reduce time to market thanks to the intuitive programming software EcoStruxure Machine Expert - HVAC
- All of the features and functions you need to design and build machines more profitably are already embedded
- Application Function Blocks reduce energy consumption and help to improve system efficiency
- Stay connected everywhere with multiple BMS connectivity and web server embedded
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Depth | 50.5 mm |
| Weight | 240 g |
|---|
Complementary Attributes
| Us Rated Supply Voltage | 9...28 V DC |
|---|
Important Information Attributes
| Certificate Agency | CE, cULus, EAC, UKCA |
|---|---|
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.2 kg CO2 eq., 0.1901115194 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 20 kg CO2 eq., 20.1828144137 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1929 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Kit Identifier | N |
| Electrical Connection | screw-clamp terminals |
| Mounting Support | mounting box |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | Modicon M171/M172 |
| Software Version | EIME v5.6.0.1 |
| Total Lifecycle Carbon Footprint | 20 kg CO2 eq. |
| Database Version | 2016-11 |
| Height Nominal | 122 mm |
| Accessory / Separate Part Category | measurement accessory |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Carbon Footprint Of The Distribution Phase A4 | 0.0309655128, 0 kg CO2 eq. |
|---|---|
| Carbon Footprint Of The Installation Phase A5 | 0.0002398247, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | kg CO2 eq., 0 |
| Local Publishable Date | 2026-03-26 |
| Service Catalog Item | Finished good |
| Weee Product Category | 5 |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Product Contributes To Saved And Avoided Emissions | No |
| Average Consumption In Ma | 20 mA |
| Fixing Mode | 2 fixing points |
| Overvoltage Category | I |
| Product Specific Application | humidity control |
| Returnability | No |
| Sustainable Packaging | Yes |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Data Source | extrapolated product |
| Width Nominal | 100 mm |
| Accessory / Separate Part Type | probe |
| Customs Code | 9025801000 |
| Functional Unit Description | For managing a wide range of HVAC/R, pumping and many other applications and a 100% of the time for 10 years |
| Functional Unit Unit | unité (unit) |
Environment Attributes Main
| Ambient Air Temperature For Operation | -40-60 °C, -40-60 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 20.4041312705 |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Relative Humidity | 0-100 % |
| Pep Verification Date | 2017-10-01 |
| Type Of Verification For The Pep | Independent internal review |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1709014EN |
| Ip Degree Of Protection | IP65 |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP1709014EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
General Attributes
| Range Of Product | Modicon M171/M172 |
|---|
ETIM
| ETIM 8 | EC004240 |
|---|---|
| ETIM 10 | EC004240 |
| ETIM 9 | EC004240 |
|---|
Output Attributes
| Output Type | current 4...20 mA +/- 3 % RH |
|---|
