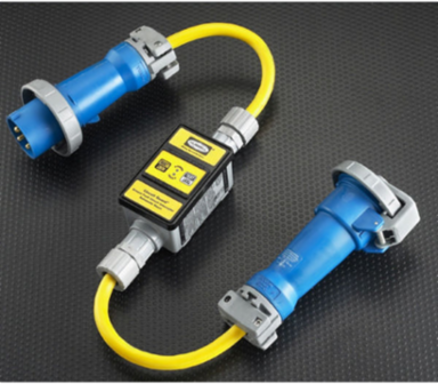

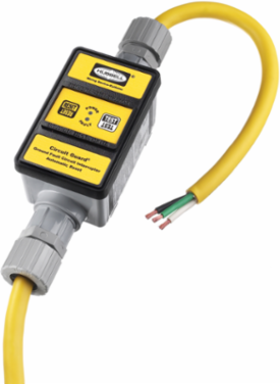

Hubbell Wiring Device-Kellems GFP8315 Portable GFCI 30A 3 Phase 208V AC, 6 Inch Cord, Type 4X

MPN: GFP8315
UPC: 783585708782
PPN: HBL-GFP8315

$1851.88

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Extra Heavy Duty Industrial Circuit Guard® Portable GFCI, 30A, 3 Phase 208V AC, 6' Cord Length, Type 4X, 4-6mA Trip Level, Automatic Set, Yellow

Features

High impact UV stabilized housing for long life
TYPE 4x and 6P wet location rated for indoor/outdoor applications
Red blinking light plus optional audible alarm
Open neutral protection Trips upon loss of neutral

Specifications

Key Specifications

Country of Origin	United States
Width	9.200 in
Voltage Rating	208 VAC
Amperage Rating	30 A
Environmental Conditions	Indoor, Outdoor, Wahsdown
Number Of Wires	4
Style	Automatic Set
Type	Portable
Freight Class Code	06168002
Image Actual Or Representative	A
Material	Non-Metallic
Base Unit of Measure	EA
Carton - SCC-14 Next Lower Level Sub Pack	00783585708782
Pallet Length	48.000 in
Pallet Width	40.000 in

Color	Gray/Yellow
Industry Standard(s)	UL 943
Weight	5.304 lb.
Application	Heavy Duty Industrial
Number Of Poles	3
Phase	3 PH
Temperature Rating	-31°F to 150°F (-35°C to 66°C)
Class Code	A40
Harmonization Code	8536308000
Sub Class Code	A40A410
Series	Extra Heavy Duty
BOX SIZE	6.400x11.250x9.200 (in)
Pallet Height	49.800 in
Pallet Weight	671.176 lb.
NAICS Code	335931A107
