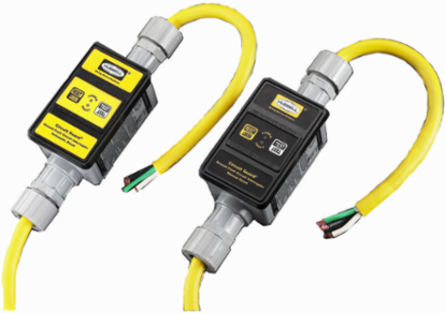

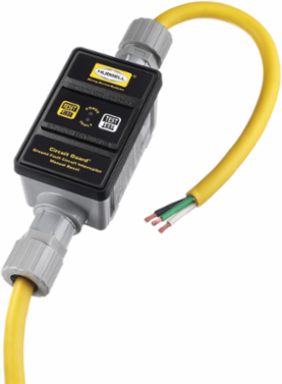

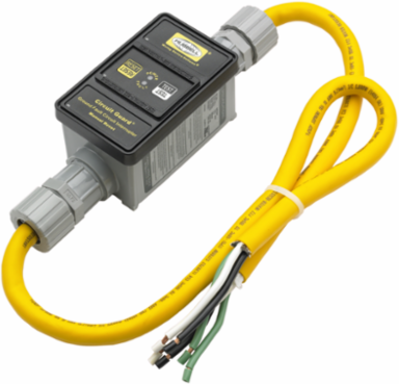

Hubbell Wiring Device-Kellems GFP8305 Portable GFCI 30A 3 Phase 208V AC, 6 Inch Cord, Type 4X

MPN: GFP8305
UPC: 783585708775
PPN: HBL-GFP8305
UNSPSC: 26121536

$1834.23

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Extra Heavy Duty Industrial Circuit Guard® Portable GFCI, 30A, 3 Phase 208V AC, 6' Cord Length, Type 4X, 4-6mA Trip Level, Manual Set, Black

Features

High impact UV stabilized housing for long life
TYPE 4x and 6P wet location rated for indoor/outdoor applications
Red blinking light plus optional audible alarm
Open neutral protection Trips upon loss of neutral

Specifications

Key Specifications

Country of Origin	United States
Industry Standard(s)	UL 943
Application	Heavy Duty Industrial
Special Features	Open neutral protection Trips upon loss of neutral
Temperature Rating	-31°F to 150°F (-35°C to 66°C)
Voltage Rating	208 VAC
Environmental Conditions	Indoor, Outdoor, Wahsdown
Number Of Wires	4
Style	Manual Set
Freight Class Code	06168002
Image Actual Or Representative	A
Material	Non-Metallic
Base Unit of Measure	EA
Carton - SCC-14 Next Lower Level Sub Pack	00783585708775
Pallet Length	48.000 in
Pallet Width	40.000 in

Width	12.300 in
Amperage Rating	30 A
Color	Gray/Black
Standard	UL 943
Type	Portable
Weight	6.424 lb.
Number Of Poles	3
Phase	3 PH
Class Code	A40
Harmonization Code	8536308000
Sub Class Code	A40A410
Series	Extra Heavy Duty
BOX SIZE	8.300x16.200x12.300 (in)
Pallet Height	46.500 in
Pallet Weight	296.960 lb.
NAICS Code	335931A107
