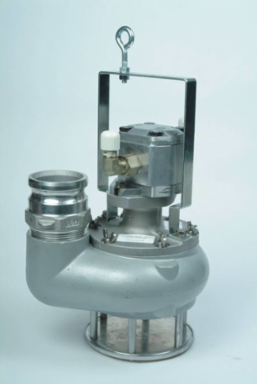

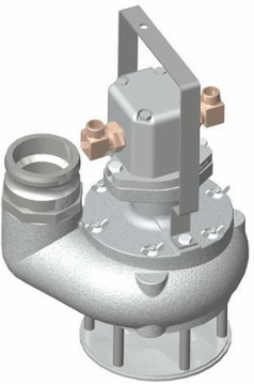

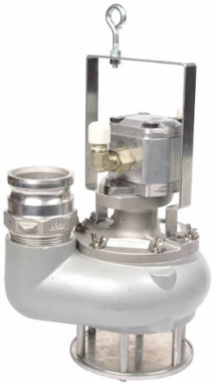

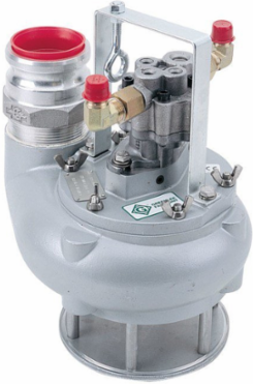

Greenlee H4635 Hydraulic Trash Pump, 3 Inch Discharge, 500 GPM Capacity, Self-Priming
- MPN: H4635
- UPC: 783310493341
- PPN: GRN-H4635
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Hydraulic Trash Pump, 3 Inch Discharge, 500 GPM Capacity, Self-Priming
Features
- Compact, under 12 IN (300 mm) diameter to easily fit into small areas
- Self-priming submersible pump can be placed and operated quickly
- Passes up to 3 IN (76 mm) solids minimizing pump blockage from debris
- Can be run dry without damage for longer working life
- Carry handle with lifting eye makes it easy to transport, move, lift, and lower
- Locking coupler for discharge hose included
- Can draw water down to depth of 2-3/4 IN (70 mm)
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Height
- 14.180 IN (360.000 MM) Over Handle
- Accessory
- 49499, 3.000 IN Diameter X 25.000 FT Discharge Hose Assembly
- Discharge Size
- 3.000 IN (76.200 MM) NPT Female
- Operating Pressure
- 0 - 2000 PSI (0 - 138 BAR)
- Return Port
- 1/2 IN Male NPTF
- System
- Open and Closed Center System
- Type
- Trash, Hydraulic
Width11.870 IN (301.000 MM)
Weight28.000 LB (11.700 KG)
CapacityUp To 500 GPM (1893 LPM) (At 8 GPM (30 LPM) And A 15.000 FT(4.500 MR) Head Height)
Flow Rate7 - 10 GPM (26.5 - 37.9 LPM)
Pressure Port1/2 IN Male NPTF
Suction Size3.125 IN (79.400 MM)
Trash Diameter3.000 IN (76.000 MM)
