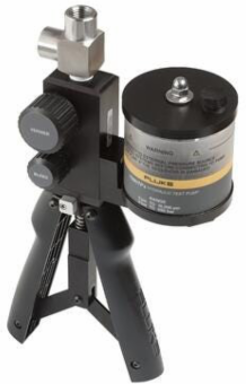

Fluke Fluke 700HTP 2 Fluke 700HTP-2 Hydraulic Test Pump Fluke 700HTP 2
- MPN: Fluke 700HTP 2
- UPC: 095969610995
- PPN: FLU-FLUKE-700HTP-2
CAD
$2454.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Fluke 700HTP-2 Hydraulic Test Pump Fluke 700HTP 2
Features
- Variable size stroke adjustment, allows the user to vary the volume and pressure per stroke
- Integral pressure adjustment vernier knob for fine pressure adjustment
- Directly connection to pressure modules consolidates two separate pieces into one when performing pressure calibration and testing
- Two 1/4 inch NPT pressure ports, one for reference (pressure module or gauge), one for UUT
- Compatible with optional Fluke-700PRV pressure relief valve designed to protect pressure modules from overpressure damage
- Improved priming
- Improved stroke limiting mechanism
- Note: The user must provide a hose with appropriate end fittings to apply pressure from the UUT port to the calibration unit under test such as the Fluke-700HTH-1 hose kit.
Documentation & Downloads
Specifications
Mechanical and General Specifications
| Size (L x W x D) | 9.5 x 6.1 x 2.6 in (241 x 155 x 66 mm) |
|---|---|
| Warranty | One year |
| Weight | 1.29 lb (.58 kg) |
|---|---|
| Material | Wetted materials: 303 stainless steel, aluminum, polyurethane, PTFE, nitrile, and nylon |
