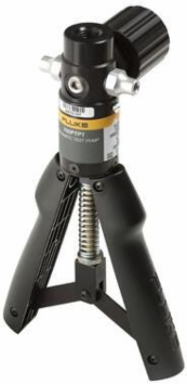

Fluke FLUKE 700PTP-1 Fluke 700PTP-1 Pneumatic Test Pump Fluke 700PTP-1
- MPN: FLUKE 700PTP-1
- UPC: 095969397711
- PPN: FLU-FLUKE-700PTP-1
CAD
$1628.39
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Fluke 700PTP-1 Pneumatic Test Pump Fluke 700PTP-1
Features
- Pump can be easily cleaned without disassembly
- The vernier can be used as a stand-alone low pressure calibration source
- Two pressure ports allowing simultaneous connection:
- 1/4 in NPT female fitting for the reference gauge or pressure module
- 1/8 F-NPT female fitting for the unit under test
- Adjustable stroke length can be set to limit the pressure per stroke
- Vacuum range from -12.7 psi or -.87 bar, pressure range up to 600 psi or 41 bar
Documentation & Downloads
Specifications
Mechanical and General Specifications
| Size (L x W x D) | 8.7 x 4.8 x 3.5 in (220 x 122 x 89 mm) |
|---|---|
| Warranty | One year |
| Weight | 1.03 lb (467 g) |
|---|---|
| Material | Wetted materials: aluminum, silicon, neoprene, stainless steel, Buna-N |
